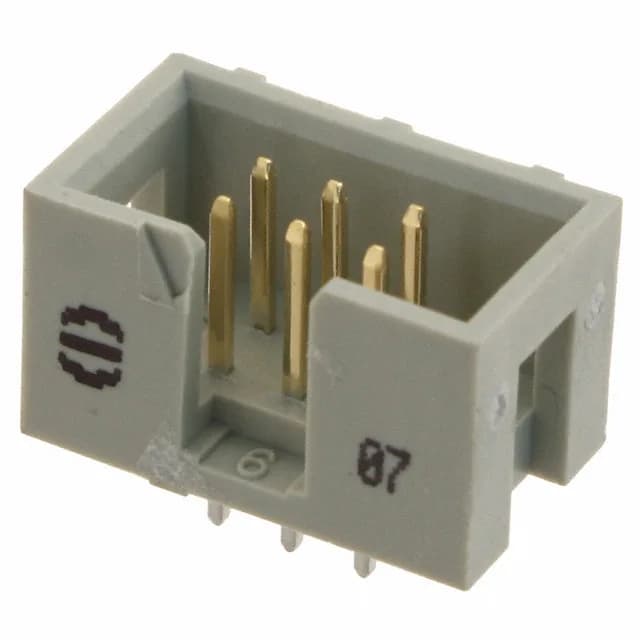

HARTING 09185067324
MPN09185067324
Active
CONN HEADER VERT 6POS 2.54MM
$1.5300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSEK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SEK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Gray |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
