HARTING 09185067803 — Panel-Mount & In-Line Circular

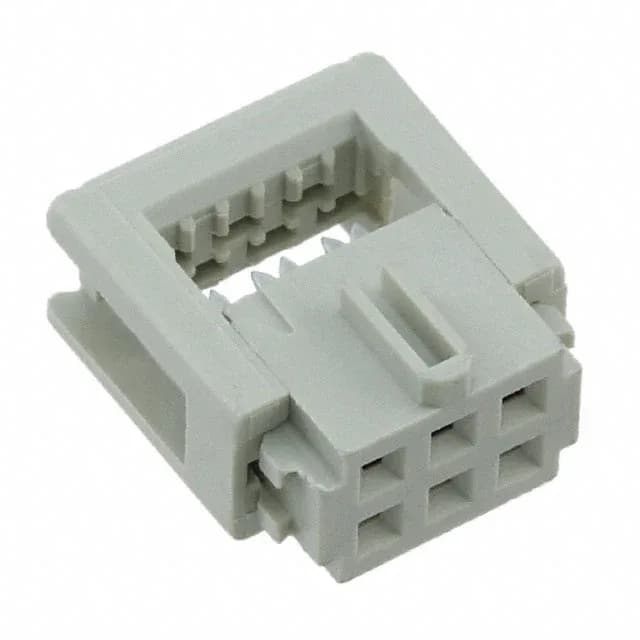

HARTING SEK 09185067803, 6-Pos IDC Receptacle, 0.100" Pitch

MPN09185067803
Active

HARTING SEK series IDC receptacle, 09185067803, 6 positions, 2 rows, 0.100" (2.54mm) pitch, gold female socket contacts, IDC termination for 26-28 AWG ribbon cable, free-hanging, bulk pack.

$1.6100Ref. price · indicative, final on quote
HARTING 09185067803 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSEK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

09185067803 specifications
ParameterValue
SeriesSEK
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions6

Product details

The HARTING 09185067803 is a 6-position, dual-row IDC receptacle from the SEK series, terminated to 26-28 AWG ribbon cable. Both the pitch and row spacing are 0.100" (2.54mm), matching the standard IDC header grid — so it lands on a 0.100" square pin header without footprint surprises. The polarizing key in the housing prevents a reversed mate, which is the kind of thing that saves a debug session on a prototype run.

Termination and Field Fit

IDC termination means no crimp tool on site — just a mass-termination press for the ribbon cable. The feed-through feature lets you daisy-chain a second receptacle on the same cable run, handy when you need a branch point in a harness without a separate junction.

Frequently asked questions

What is the exact pitch and row spacing of HARTING 09185067803?

Both the pitch between contacts and the row spacing are 0.100" (2.54mm), which is the standard grid for IDC ribbon cable connectors. This matches a standard 0.100" square pin header.

Is HARTING 09185067803 RoHS compliant?

Yes, it is ROHS3 compliant, covering the full restricted substance list including the four phthalates.

What are the alternatives to HARTING 09185067803?

The closest alternative is the 09185065813, which is the same 6-position, dual-row IDC receptacle but with an added strain relief feature. Both are active SEK series parts with the same pitch and gold contacts.

What wire gauge does HARTING 09185067803 support?

It accepts 26-28 AWG ribbon cable, which covers the standard gauges used for IDC mass-termination in signal harnesses.
