HARTING 09185107803800 — Panel-Mount & In-Line Circular

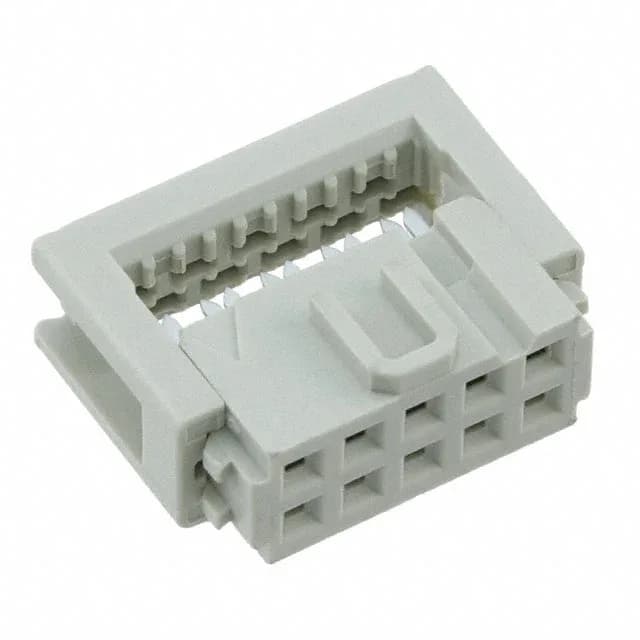

HARTING SEK 09185107803800, 10-Position IDC Receptacle

MPN09185107803800
Active

HARTING SEK series IDC receptacle, 10 positions, 0.100" (2.54mm) pitch, 2 rows, female socket, free hanging, 26-28 AWG ribbon cable, feed through with polarizing key, tray.

$1.9400Ref. price · indicative, final on quote
HARTING 09185107803800 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSEK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

09185107803800 specifications
ParameterValue
SeriesSEK
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
Pitch0.100\" (2.54mm)
PackageTray
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Rows2
Positions10

Product details

The HARTING 09185107803800 is a 10-position IDC receptacle from the SEK series, terminated to 26-28 AWG ribbon cable. The free-hanging body includes a feed-through design with a polarizing key, so the cable passes straight through the connector and the key prevents a reversed mate on the header.

26-28 AWG Ribbon — Match the Cable to the Connector

This receptacle is built for 26-28 AWG ribbon cable, terminated by an IDC slot.

10 Circuits vs 20 — the 09185207803800 Sibling

The 09185207803800 is the 20-position version of the same SEK IDC receptacle — same 0.100" pitch, same 26-28 AWG ribbon range, same feed-through and polarizing key. The only difference that matters for the BOM is the circuit count: 10 positions on the 09185107803800 against 20 on the 09185207803800. If your harness has 10 conductors, this is the one; if it has 20, the 09185207803800 is the correct mate. No other spec changes between them.

It is ROHS3 compliant. No official cross-reference or replacement is listed, so the 10-position count and the 0.100" pitch are the fit anchors.

Frequently asked questions

What wire gauge works with 09185107803800?

This IDC receptacle accepts 26-28 AWG ribbon cable. The insulation displacement slot is sized for that range — 28 AWG is the minimum, 26 AWG the maximum.

What is the difference between 09185107803800 and 09185207803800?

The 09185207803800 is the 20-position sibling of this 10-position receptacle. Both share the same 0.100" pitch, 26-28 AWG ribbon range, and feed-through design with polarizing key. The circuit count is the only difference that changes the BOM line.
