HARTING 09185266324 — Pin Headers

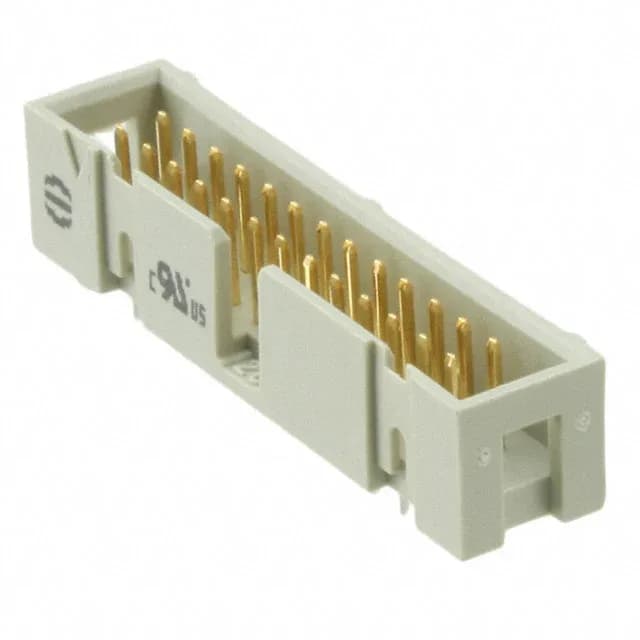

HARTING 09185266324

MPN09185266324
Active

CONN HEADER VERT 26POS 2.54MM

$2.7300Ref. price · indicative, final on quote
HARTING 09185266324 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSEK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

09185266324 key specifications
ParameterValue
SeriesSEK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorGray
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

09185266324 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
