HARTING 09185306803 — Panel-Mount & In-Line Circular

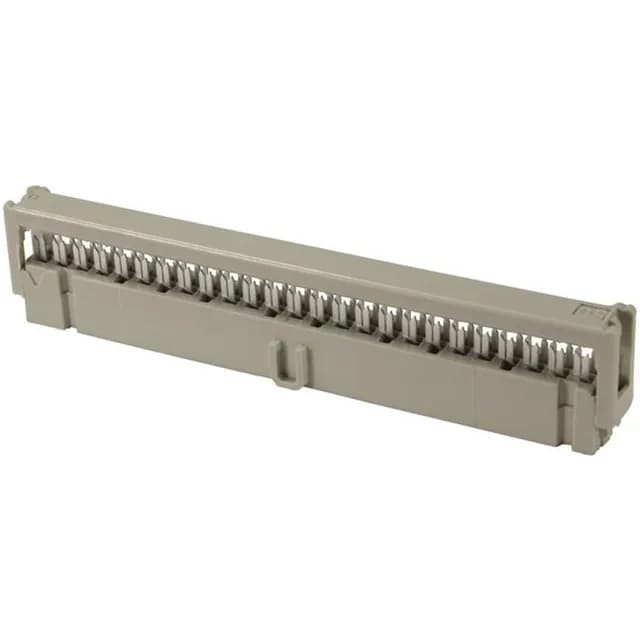

HARTING SEK 09185306803, 30-Position IDC Receptacle

MPN09185306803
Active

HARTING SEK 09185306803, 30-position IDC receptacle, 2 rows, 0.100" (2.54mm) pitch, gold female contacts, free-hanging, for 26-28 AWG ribbon cable.

$3.3100Ref. price · indicative, final on quote
HARTING 09185306803 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSEK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

09185306803 specifications
ParameterValue
SeriesSEK
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
Pitch0.100\" (2.54mm)
PackageTray
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions30

Product details

SEK IDC Receptacle, 30-Position — Ribbon Cable Harness Side

The HARTING 09185306803 is a 30-position female IDC receptacle from the SEK series, designed for mass-termination to 26-28 AWG ribbon cable.

Termination and Harness Assembly

Termination is IDC — the insulation-displacement contacts pierce the ribbon cable insulation in one press operation. No wire stripping or crimping is needed. A polarizing key prevents misalignment with the mating header, and the feed-through design allows daisy-chaining or pass-through wiring in the harness.

Frequently asked questions

What is the wire gauge range for HARTING 09185306803?

This IDC receptacle accepts 26-28 AWG ribbon cable. The insulation-displacement contacts are sized for that wire range.
