HARTING 09195107323 — Pin Headers

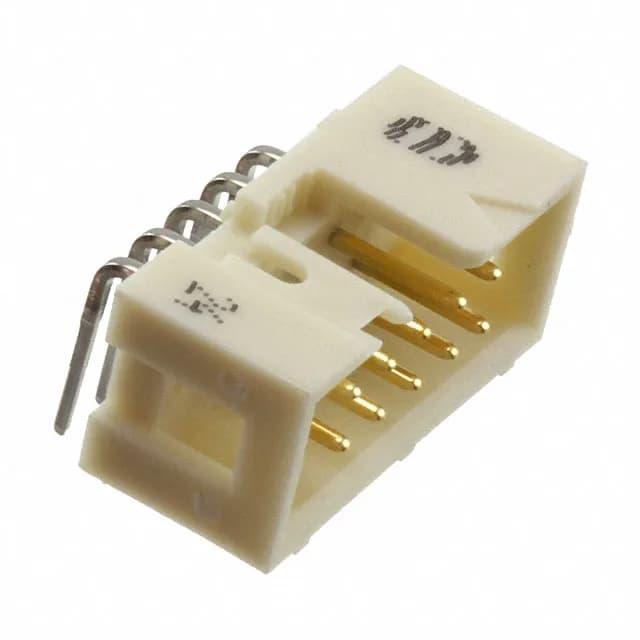

HARTING 09195107323

MPN09195107323
Active

CONN HEADER R/A 10POS 2.54MM

$1.9900Ref. price · indicative, final on quote
HARTING 09195107323 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSEK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

09195107323 key specifications
ParameterValue
SeriesSEK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.366\" (9.30mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

09195107323 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.114\" (2.90mm)
Contact length - mating0.240\" (6.10mm)
