15-Position High-Density D-Sub with 4-40 Screwlock

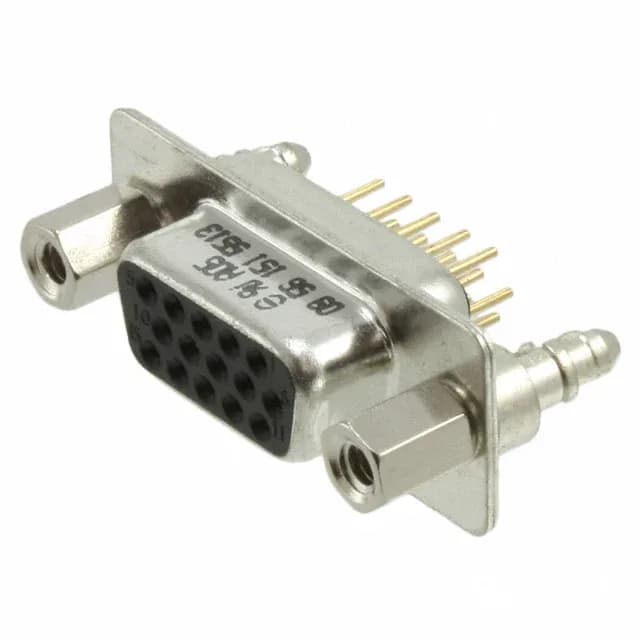

The Harting 09561515513 is a high-density D-Sub receptacle with 15 female socket contacts arranged in 3 rows. Rated 2 A per contact, it's a signal-duty connector for applications where standard-density D-Subs won't fit the required circuit count in the same shell size. The shell layout is 1 (DE, E) High Density, meaning it packs 15 positions into the same panel cutout that a standard DE-9 uses. The mating side carries female screwlocks (4-40 thread), so you need a plug with male screwlocks or jackscrews to secure the pair.
30.0 µ" Gold — Built for Repeated Mates
The gold thickness also gives a corrosion margin for mildly aggressive environments inside an enclosure. The housing is glass-filled PBT/Polyester rated UL94 V-0, and the steel shell is nickel-plated.
