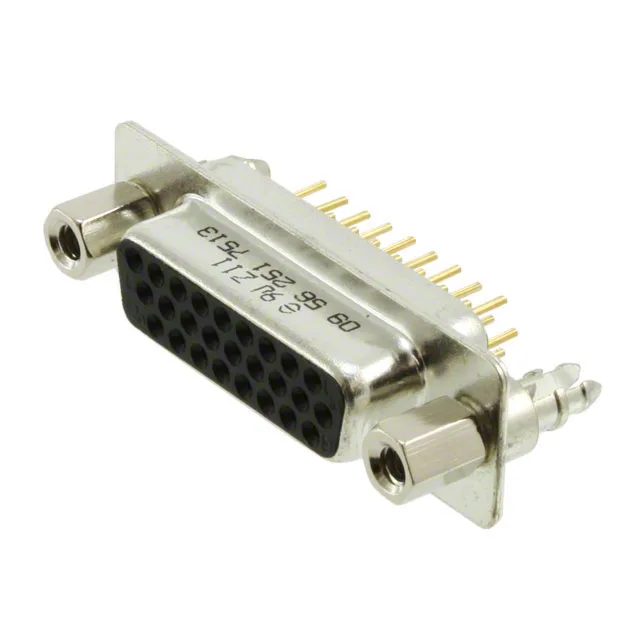

CONN D-SUB HD RCPT 26P VERT SLDR
$9.62Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Gender | Signal |
| Mounting type | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Current rating | 2A |
| Contact form | Stamped |
| Shell size, connector layout | 2 (DA, A) High Density |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold or Gold-Palladium |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 3 |
| Positions | 26 |
| Contact finish thickness | 30.0µin (0.76µm) |
Sourcing this connector
HARTING 09562515513 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against HARTING and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
