Right-Angle High-Density D-Sub for Dense I/O Panels

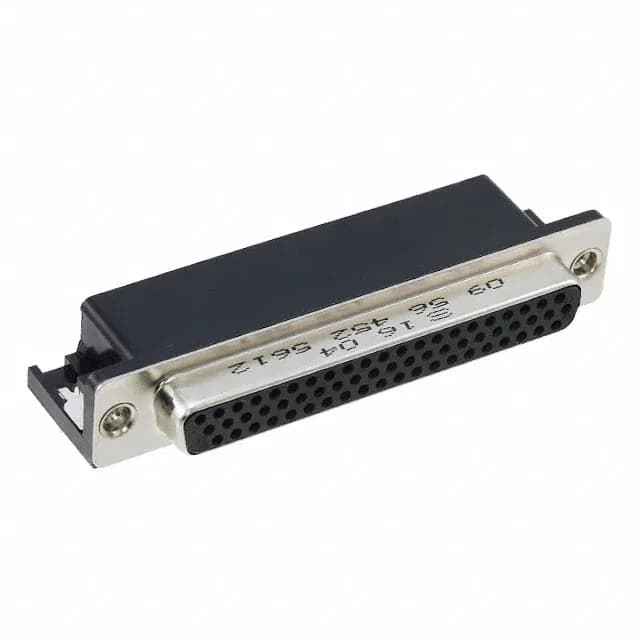

The HARTING 09564527612 is a 62-position high-density D-sub receptacle in the DC (C) shell size, with three rows of stamped signal contacts. The 4-40 threaded inserts on the flange let you bolt it to a panel or mating shell for a rigid mechanical joint that won't work loose under vibration.
Board Lock Keeps It Put Through Solder and Service
Without those locking tabs, a right-angle D-sub this dense can lift off the board when you torque down the jack-screws.
2 A per Contact — Signal Duty, Not Power Rails
Each contact is rated 2 A, which is typical for high-density D-subs — the pin pitch is tighter than standard D-sub layouts, so the current per circuit is derated to keep temperature rise under control. This connector is meant for signal I/O, parallel data buses, or low-current control lines, not for feeding a motor drive or a power supply rail.
62 Positions vs the 26-Position Sibling
The same shell size (DC, C) high-density layout is shared with the 26-position 09562525612. Both use the same 4-40 flange, three-row arrangement, and 0.350" backset spacing. The difference is contact population: the 62-position variant fills every available cavity, while the 26-position leaves most positions empty.
