9-Position D-Sub Receptacle with Board Lock

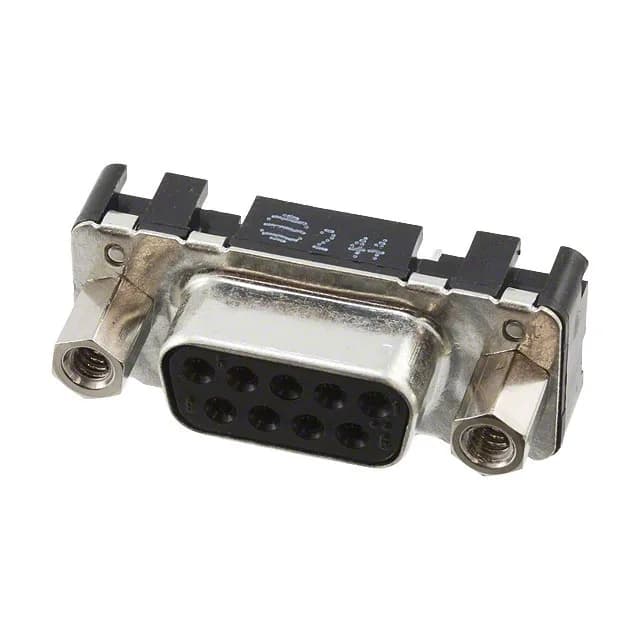

The HARTING 09661516513 is a standard-density D-Sub receptacle, female sockets, in the DE-9 shell size (1, DE, E). This 9-position, 2-row connector is specified for board-to-cable I/O connections where a reliable, keyed interface and screw-lock retention are required — typical for serial ports, industrial control panels, and instrumentation. Rated 6.5 A per contact, the stamped signal contacts in copper alloy carry enough current for general-purpose signal duty. The part ships in tray packaging, typical for machine-placement of through-hole connectors.
Vertical vs. Right-Angle — 09661516513 vs. 09661527613
The 09661527613 is the right-angle variant of the same 9-position D-Sub receptacle, also active and rated 6.5 A with board lock and 4-40 screwlocks. All other specs — current, temperature range, shell material, flammability rating, contact material — are identical.
For BOM planning, the 9-position count and DE-9 shell size must match the mating plug and the PCB footprint; the right-angle sibling 09661527613 is the only direct alternative within the same series.
