Hinged Backshell for 9-Position D-Sub Connectors

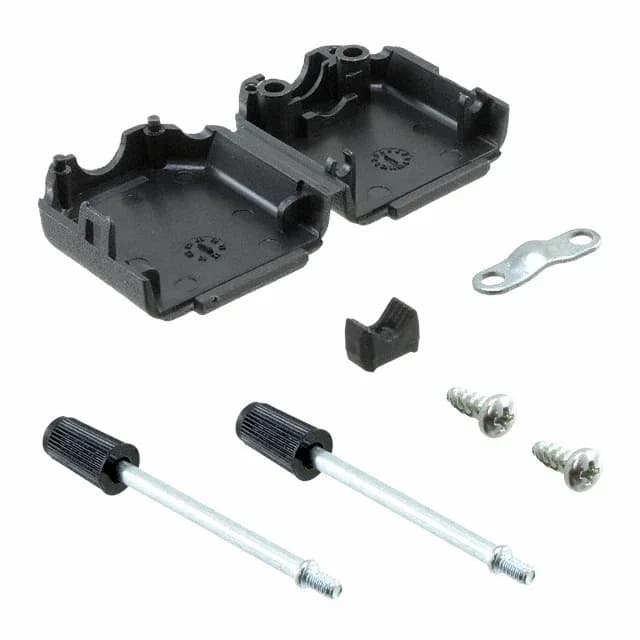

The HARTING 09670090424 is a hinged plastic backshell designed for standard 9-position D-sub connectors, with the added ability to also fit high-density 15-position shells — a useful cross-over for harness shops that stock both. The 180° cable exit routes the round cable straight out the back, keeping the assembly profile low for panel-mount layouts where a right-angle exit would interfere with the enclosure wall. Black thermoplastic body, unshielded, with the 4-40 mating screws included in the package so you don't need a separate hardware kit. The cable clamp and grommets are built in, securing the jacket and providing basic strain relief at the connector end.
What the 4-40 Screws and Locking Feature Mean for the Build
The integrated locking mechanism and 4-40 mating screws mean this backshell holds the connector pair together without relying solely on the D-sub's own jackscrew tension. In a panel-mount setup where the connector is bolted to the chassis, the backshell's screws take the cable-end strain off the D-sub's die-cast shell. The locking action also prevents the backshell from vibrating loose on equipment that sees constant movement — test racks, portable gear, or machinery with fans that transmit low-frequency shake through the harness.
