Combo D-Sub Housing — 7W2 Layout, Contacts Not Included

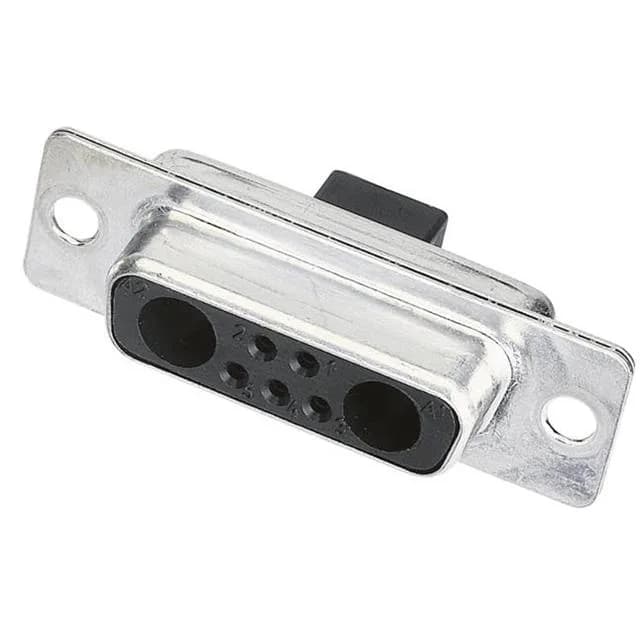

The HARTING 09692020072 is a D-Sub combo receptacle housing that accepts female contacts. It uses the 7W2 layout — 7 total positions arranged as 5 signal cavities plus 2 coax or power cavities — all within a standard DA (A) shell size. This is not a full 9-position D-Sub; the combo format lets you route signal and higher-current or coaxial lines through a single shell, saving panel space over separate connectors. The housing is free-hanging (in-line) with an unthreaded flange, designed for cable-to-panel or cable-to-cable mating where mounting hardware is supplied separately. The housing accepts female contacts; the mating plug uses male contacts.
Shell Size and Panel Fit
The shell size is 2 (DA, A) per the D-Subminiature standard, which means the panel cutout and mounting hole spacing match the familiar DA-15 footprint — the same shell as a standard 15-position D-Sub. The 7W2 layout fits that same shell, so if you have a panel already punched for a DA-15, this combo housing will bolt in without modification. The flange is unthreaded, so jackscrews or slide-locks must be ordered separately. Standard hardware for DA-size shells will work, but confirm thread pitch and length against panel thickness.
