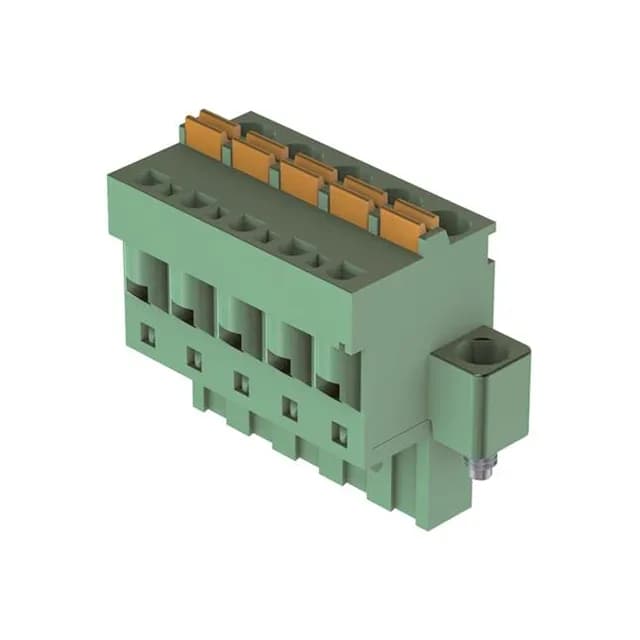

HARTING 14310317106000
MPN14310317106000
Active
HAR-FLEXICON, 3PIN FEMALE, HORIZ
$8.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Serieshar-flexicon®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | har-flexicon® |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon, Polyphthalamide (PPA) |
| Insulation height | 0.986\" (25.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Push Button Actuated, Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
