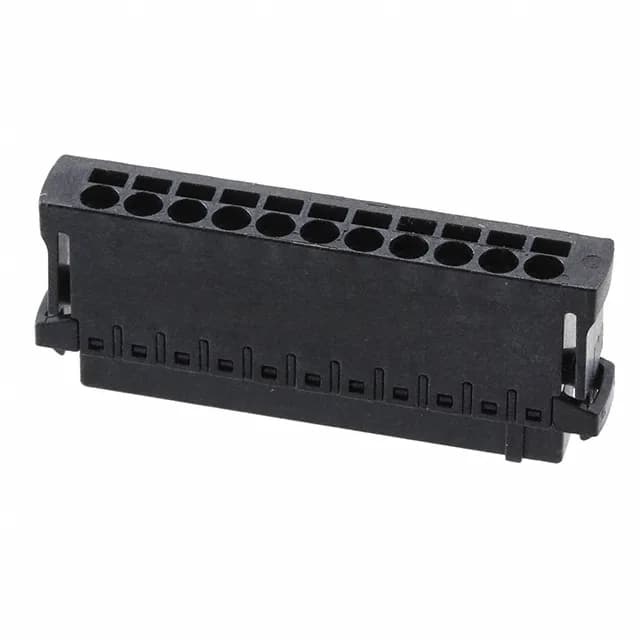

HARTING 14311113101000
MPN14311113101000
Active
TERM BLOCK PLUG 11POS STR 2.54MM
$5.8600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Serieshar-flexicon®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | har-flexicon® |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 160 V |
| Current - UL | 6 A |
| Plug wire entry | 180° |
| Wire strip length | 6mm |
| Wire gauge or range - AWG | 20-26 AWG |
| Wire gauge or range - mm2 | 0.14-0.5mm² |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation height | 0.193\" (4.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Latch Lock |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 11 |
| Positions per level | 11 |
| Contact mating finish | Tin |
