HARTING 15210322401000
MPN15210322401000
Active

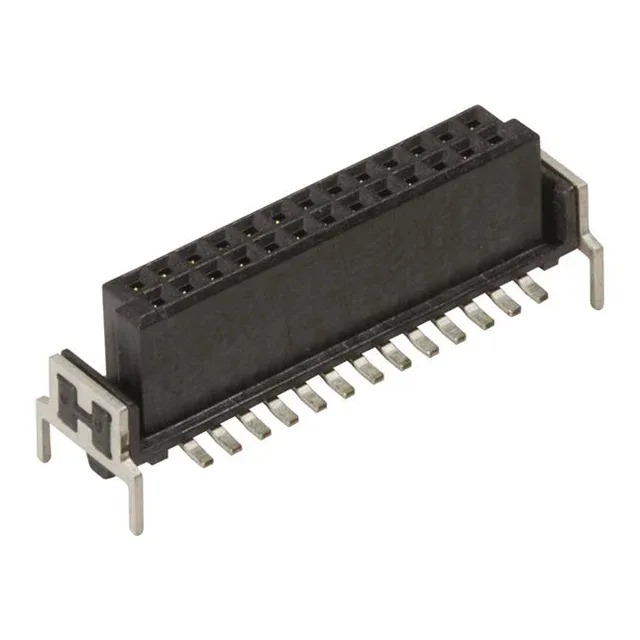

CONN RCPT 32POS 0.05 GOLD SMD
$5.50482Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Serieshar-flex®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | har-flex® |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.246\" (6.25mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 32 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
