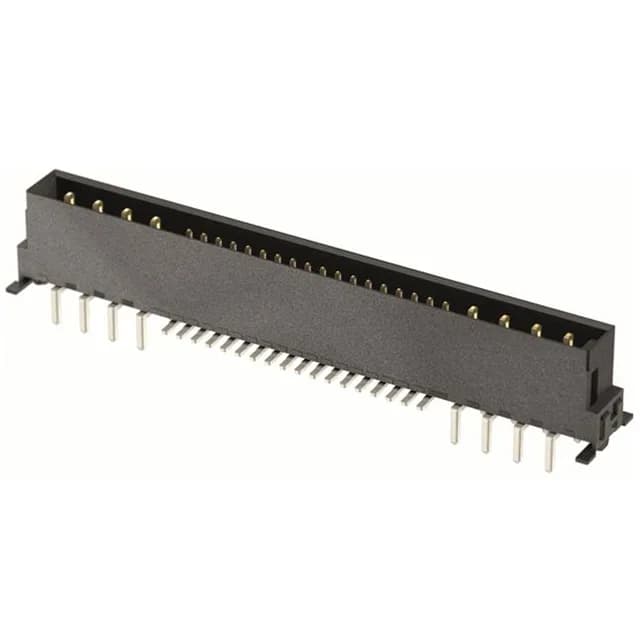

HARTING 15724162601000
MPN15724162601000
Active
HAR-FLEX HYBRID STRAIGHT MALE, 3
$8.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Serieshar-flex®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | har-flex® |
| Type | Male Blade; Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50VAC, 120VDC |
| Current rating | 20A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.319\" (8.10mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular, Square |
| Rows | 2 |
| Positions | 20 (16 + 4 Power) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.181\" (4.60mm) |
