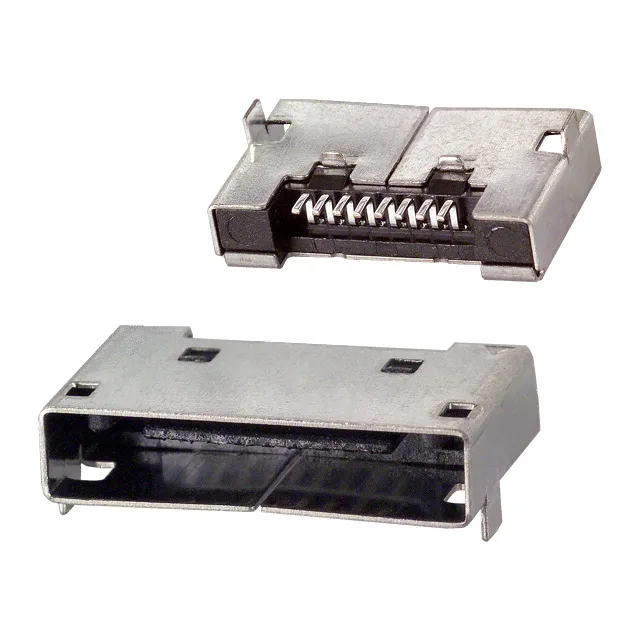

3260-8S1 — 8-Position 0.80mm Right-Angle SMT Receptacle, Obsolete
MPN3260-8S1
Obsolete
3260-8S1, Series 3200, 8-position 0.031-inch (0.80mm) right-angle surface-mount receptacle, Board to Cable/Wire style, 125VAC rated, 500mA per circuit, gold mating contacts (8.00µin), phosphor bronze, UL94 V-0 PPS insulation.
$3.3300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3200 |
| Type | Center Strip Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 125VAC |
| Current rating | 500mA |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Shielded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 8 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.25µin (0.032µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Frequently asked questions
What is the 3260-8S1's connector style?
Board to Cable/Wire — designed to accept a cable-side plug on one face and terminate to the PCB on the other, routing signals or low-power circuits off the board edge.
