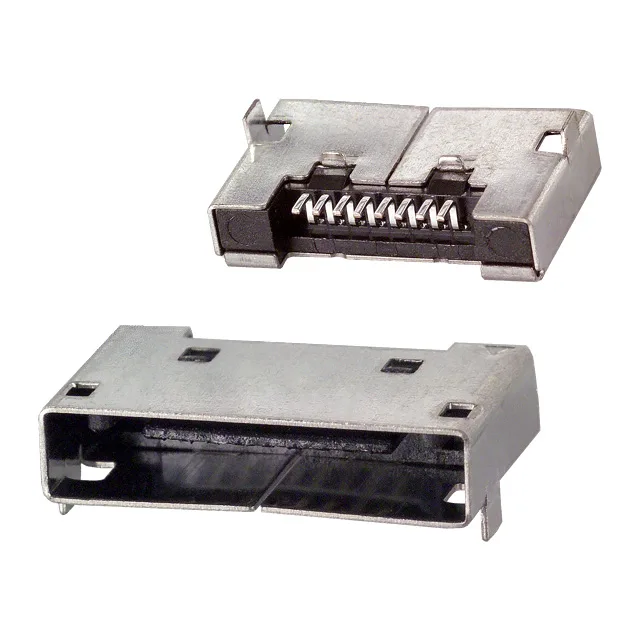

C&K 3260-8S1(56) Receptacle, 8P, 0.80mm, Right-Angle SMT
MPN3260-8S1(56)
Active
C&K 3260-8S1(56), 8-position 0.80mm pitch shielded SMT receptacle, right-angle surface mount, latch holder, 500 mA per circuit, gold mating finish, board guide, UL94 V-0 PPS housing, Tape & Reel.
$2.4018Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3200 |
| Type | Center Strip Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 125VAC |
| Current rating | 500mA |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Board Guide, Shielded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 8 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.25µin (0.032µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Frequently asked questions
What connector series does the 3260-8S1(56) belong to?
It is a member of the C&K 3200 series, a shielded board-to-cable SMT connector family with latch holder fastening and board guide features.
What is the connector style of the 3260-8S1(56)?
The listed style is Board to Cable/Wire — the receptacle terminates to the PCB and mates with a cable-side plug or housing.
