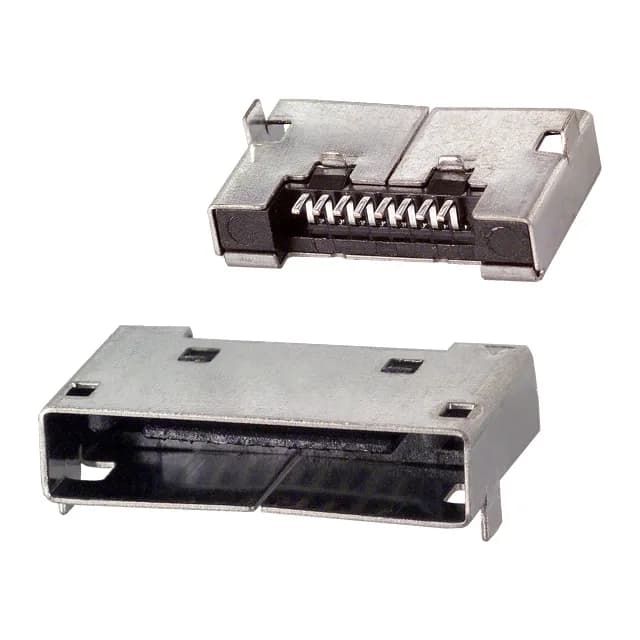

3260-8S3 — 8-Position 0.80 mm Shielded SMT Receptacle, Obsolete
MPN3260-8S3
Obsolete
3260-8S3 board-to-cable receptacle, 8 positions, 0.80 mm (0.031 inch) pitch, right-angle surface mount, 125VAC at 500mA per circuit, gold-over-gold contact finish, phosphor bronze, PPS insulator rated UL94 V-0, latch holder fastening, shielded with board guide.
$3.3300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3200 |
| Type | Center Strip Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 125VAC |
| Current rating | 500mA |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Shielded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 8 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.25µin (0.032µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Frequently asked questions
What is 3260-8S3's connector style?
The 3260-8S3 is a Board to Cable/Wire style receptacle — designed to mount on a PCB and accept a mating cable-side connector.
