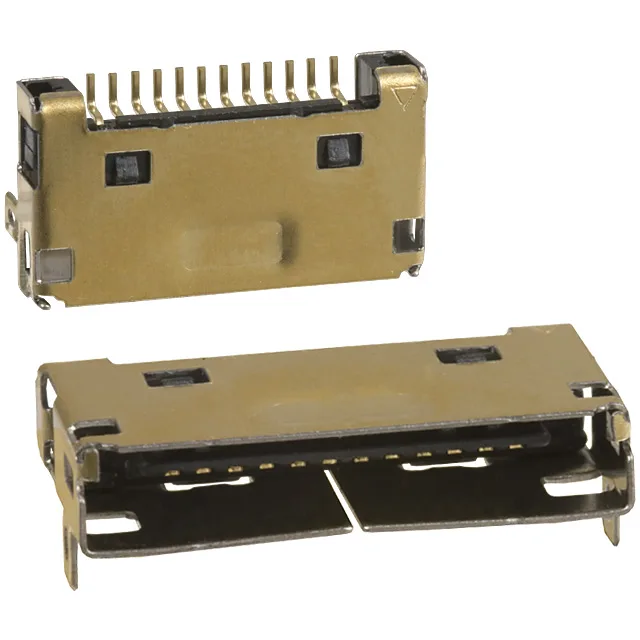

3260B-12S3(56) Receptacle, 12pos, 0.80mm, Right-Angle SMT, Shielded
MPN3260B-12S3(56)
Active
CWB Systems 3200 series shielded SMT receptacle, 12 positions at 0.031" (0.80mm) pitch, right-angle surface-mount, gold-over-phosphor-bronze contacts rated 500mA per circuit at 125VAC, latch holder fastening, UL94 V-0 PPS insulator, 8.00µin gold on mating face.
$2.8500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3200 |
| Type | Center Strip Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 125VAC |
| Current rating | 500mA |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide, Shielded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 12 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.25µin (0.032µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Frequently asked questions
What is the 3260B-12S3(56)'s listed style?
The connector is classified as Board to Cable/Wire — a right-angle SMT receptacle that accepts a mating plug to complete the cable-to-board interconnect.
