Hirose Electric Co Ltd A3B-12D-2C

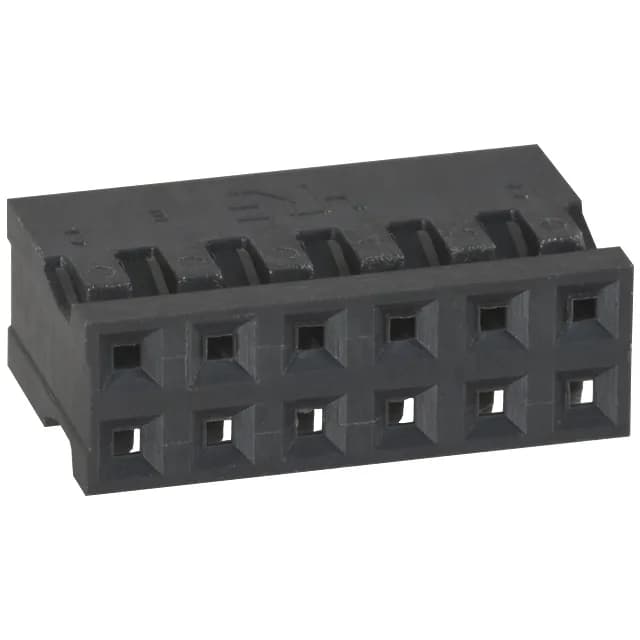

Hirose A3B-12D-2C Receptacle Housing, 12 Pos, 2.00mm

MPN A3B-12D-2C
Active

Hirose A3 series receptacle housing, A3B-12D-2C, 12 positions, 2 rows, 0.079" (2.00mm) pitch, free-hanging, crimp termination, black PBT, bulk.

$0.4400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesA3
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

A3B-12D-2C specifications
ParameterValue
SeriesA3
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 85°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions12

Product details

What This A3 Receptacle Housing Does

The Hirose A3B-12D-2C is a 12-position, dual-row receptacle housing from the A3 series, designed for free-hanging inline wire-to-board or wire-to-wire connections.

Pitch, Positions, and the Housing-Only Reality

At 0.079" (2.00 mm) pitch, this housing mates with standard A3 series pin headers. The dual-row layout gives you 12 circuits in a narrower body than a single-row 12-position — useful when routing a harness through a tight cable gland or conduit. The black PBT insulation material handles -55°C to 85°C, which covers most control cabinet and light industrial environments without issue. The 'Contacts Not Included' note is not a footnote — it is the main procurement detail. You need the separate A3 series female crimp socket terminals (sold per reel or strip) to populate this housing.

The difference is 12 positions versus 8 — four more circuits in the same body width. For a 12-circuit control interface, this is the direct fit.
