Hirose BM10 series header, outer shroud contacts, 30 positions, 2 rows, 0.016" (0.40mm) pitch, surface mount, gold contact finish, 0.025" (0.63mm) height above board, 0.8mm mated stacking height, solder retention features.
| Parameter | Value |
|---|---|
| Series | BM10 |
| Mounting | Surface Mount |
| Connector type | Header, Outer Shroud Contacts |
| Height above board | 0.025\" (0.63mm) |
| Mated stacking heights | 0.8mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 30 |
| Contact finish thickness | 2.00µin (0.051µm) |

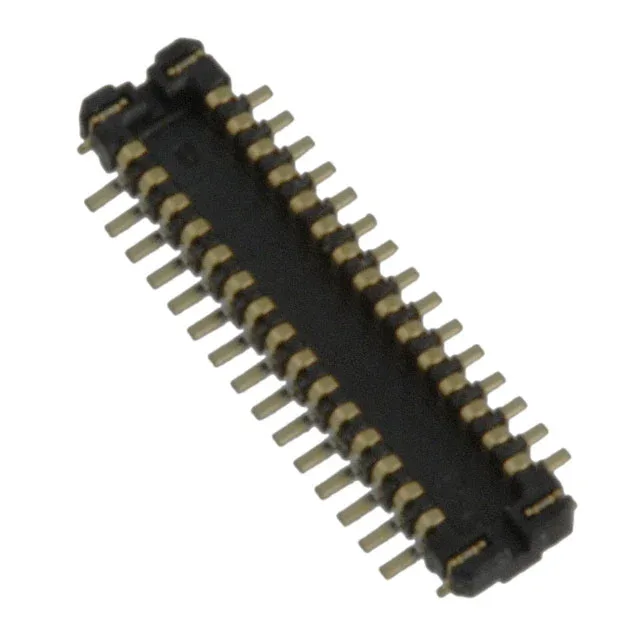

The Hirose BM10B(0.8)-30DP-0.4V(51) is a 30-position header from the BM10 series, designed for board-to-board mezzanine stacking. With a 0.016" (0.40mm) pitch and a mated stacking height of 0.8mm, this connector targets tight z-height budgets in compact portable electronics.
The mated stacking height is 0.8mm, with the header sitting 0.025" (0.63mm) above the board surface.
This part is sourced to order.
