Hirose Electric Co Ltd BM10NB(0.8)-24DS-0.4V(51) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

Hirose BM10NB(0.8)-24DS-0.4V(51) 24-Position 0.4mm Pitch

MPNBM10NB(0.8)-24DS-0.4V(51)
Active

Hirose BM10 series, 24-position receptacle, 0.016" (0.40mm) pitch, dual-row, surface mount, gold contact finish, 0.031" (0.80mm) mated height, solder retention.

$0.9100Ref. price · indicative, final on quote
BM10NB(0.8)-24DS-0.4V(51) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM10NB(0.8)-24DS-0.4V(51) Technical Specifications
ParameterValue
SeriesBM10
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.031\" (0.80mm)
Mated stacking heights0.8mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions24
Contact finish thickness2.00µin (0.051µm)

Product details

Mezzanine Stacking Specs for the BM10NB(0.8)-24DS-0.4V(51)

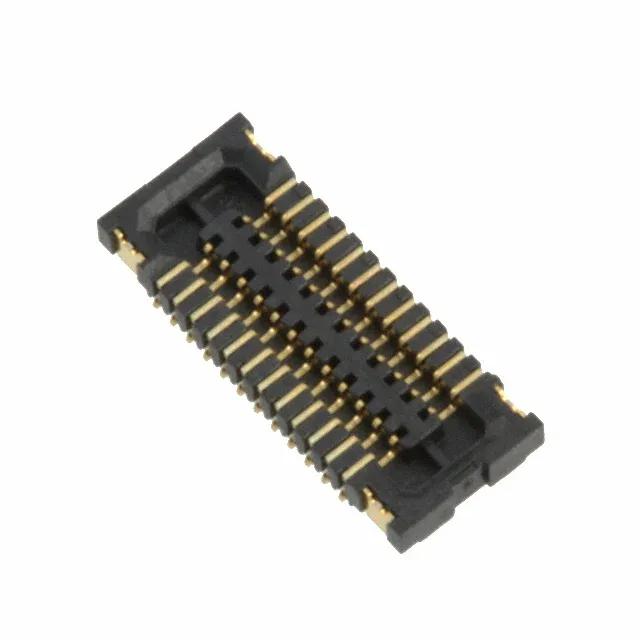

The Hirose BM10NB(0.8)-24DS-0.4V(51) is a 24-position receptacle with center strip contacts from the BM10 series, designed for board-to-board mezzanine stacking at a fixed mated height of 0.8 mm. The 0.016" (0.40mm) pitch and dual-row layout keep the board footprint tight, while the gold-plated contacts (2.00µin thickness) handle repeated mating cycles in compact consumer electronics, wearables, or handheld devices.

The BM10NB(0.8)-24DS-0.4V(51) sits between the 20-position BM10NB(0.8)-20DS-0.4V(51) and the 30-position BM10NB(0.8)-30DS-0.4V(51) at the same 0.40mm pitch and 0.8mm stacking height. The 24-position count matches a 24-signal BOM line without leaving unused contacts — a cleaner fit than the 20-position version for a 24-circuit board, and a smaller footprint than the 30-position alternative.
