Hirose Electric Co Ltd BM20B(0.6)-24DS-0.4V(51) — Mezzanine & Stacking Connectors

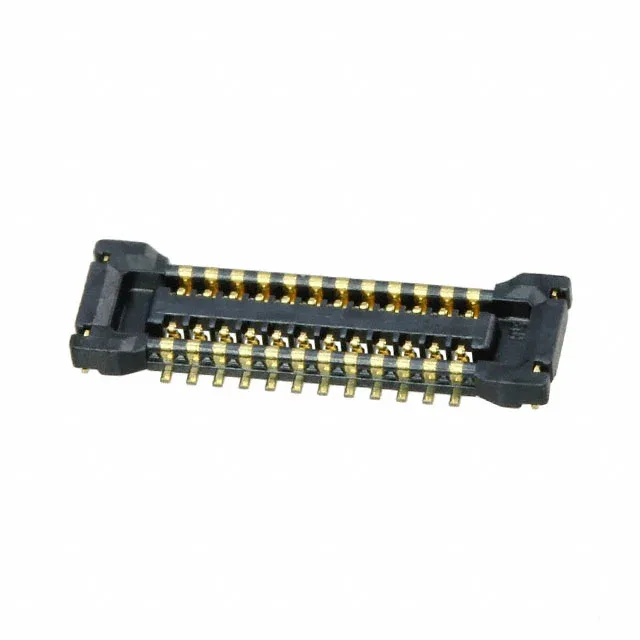

Hirose BM20B(0.6)-24DS-0.4V(51)

MPNBM20B(0.6)-24DS-0.4V(51)
Active

Hirose BM20 series receptacle, center strip contacts, 24 positions, 2 rows, 0.016" (0.40mm) pitch, 0.024" (0.61mm) height above board, 0.6mm mated stacking height, surface mount, gold contact finish 2.00µin, solder retention features.

$1.3200Ref. price · indicative, final on quote
Hirose Electric Co Ltd BM20B(0.6)-24DS-0.4V(51) datasheet (PDF)
RoHSRoHS Compliant
SeriesBM20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

BM20B(0.6)-24DS-0.4V(51) specifications
ParameterValue
SeriesBM20
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.024\" (0.61mm)
Mated stacking heights0.6mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions24
Contact finish thickness2.00µin (0.051µm)

Product details

0.40mm Pitch Mezzanine Receptacle for Tight Stack Heights

The BM20B(0.6)-24DS-0.4V(51): Gold-plated contacts with 2.00µin (0.051µm) thickness handle the mating cycles typical of a mezzanine interconnect in portable or modular equipment.

Solder Retention and Surface Mount Termination

Surface mount termination suits automated pick-and-place assembly. The Tape & Reel packaging feeds directly into a placement machine, with Cut Tape available for prototype runs.

The BM20B(0.6)-24DS-0.4V(53) variant is a direct functional equivalent if supply conditions favour that suffix.

Frequently asked questions

What is the pitch of BM20B(0.6)-24DS-0.4V(51)?

The pitch is 0.016" (0.40mm), which drives the board footprint and routing density for the mezzanine interconnect.

Where can I buy BM20B(0.6)-24DS-0.4V(51)?

This part is sourced to order against your BOM quantity.
