Hirose Electric Co Ltd BM23FR0.6-10DP-0.35V(895) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

Hirose BM23FR0.6-10DP-0.35V(895) 10POS 0.35mm Header

MPNBM23FR0.6-10DP-0.35V(895)
Active

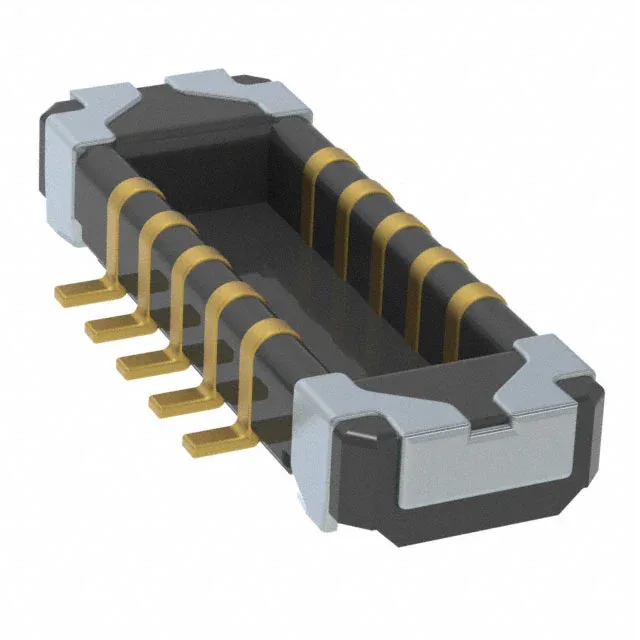

Hirose BM23 series header, outer shroud contacts, 10 positions, 2 rows, 0.014" (0.35mm) pitch, surface mount, gold contact finish, 0.020" (0.50mm) height above board, 0.6mm mated stacking height.

$0.8200Ref. price · indicative, final on quote
BM23FR0.6-10DP-0.35V(895) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BM23FR0.6-10DP-0.35V(895) Technical Specifications
ParameterValue
SeriesBM23
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.020\" (0.50mm)
Mated stacking heights0.6mm
Pitch0.014\" (0.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions10
Contact finish thickness1.97µin (0.050µm)

Product details

0.6mm Stacking Header for Dense Board-to-Board Interconnects

The Hirose BM23FR0.6-10DP-0.35V(895) is a 10-position header from the BM23 series, designed for ultra-low-profile board-to-board stacking. With a 0.014" (0.35mm) pitch and a mated stacking height of 0.6mm, this connector is built for space-constrained electronics where the z-axis clearance is measured in fractions of a millimeter.

Position Count and Board Fit

This 10-position member of the BM23 family sits between the 8-position BM23FR0.6-8DP-0.35V(895) and the 12-position BM23FR0.6-12DP-0.35V(895) at the same 0.014" (0.35mm) pitch and 0.6mm stacking height. The position count is the only variable — the footprint pitch and board layout pattern are identical across the series, so swapping to a different position count requires a PCB layout change to match the contact row length.

SMT Termination and Solder Retention

Tape & Reel packaging supports automated pick-and-place assembly.

Frequently asked questions

What is the mating connector for BM23FR0.6-10DP-0.35V(895)?

The BM23FR0.6-10DP-0.35V(895) mates with a matching BM23 series receptacle of the same position count and 0.35mm pitch. The receptacle half is the female counterpart in the same series, designed for the same 0.6mm stacking height.

Where can I buy BM23FR0.6-10DP-0.35V(895)?

This part is sourced to order.
