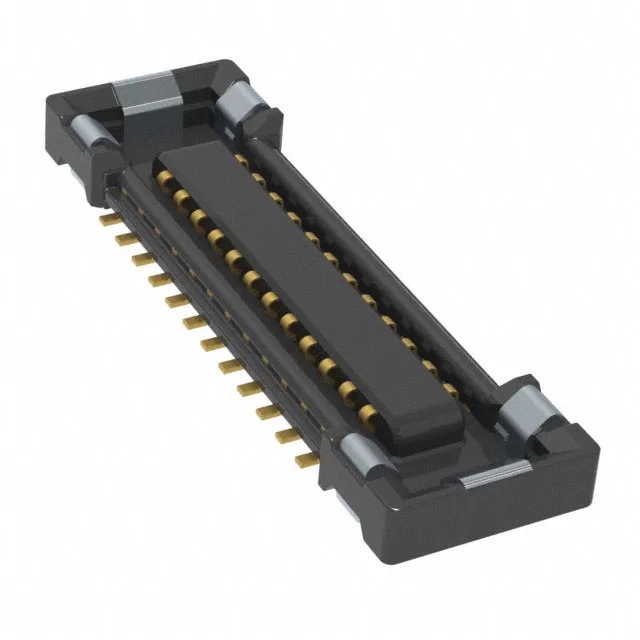

Hirose BM23 series receptacle, center strip contacts, 24 positions, 2 rows, 0.014" (0.35mm) pitch, surface mount, gold contact finish, 0.024" (0.61mm) height above board, solder retention, tape and reel.
| Parameter | Value |
|---|---|
| Series | BM23 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.024\" (0.61mm) |
| Mated stacking heights | 0.6mm |
| Pitch | 0.014\" (0.35mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 24 |
| Contact finish thickness | 1.97µin (0.050µm) |
The Hirose BM23FR0.6-24DS-0.35V(895) is a 24-position receptacle with center strip contacts from the BM23 series, designed for board-to-board mezzanine stacking at a mated height of 0.6mm. The 0.014" (0.35mm) pitch is the tightest in the BM23 family, which means the board footprint needs careful trace routing — the narrow pitch limits per-contact current but keeps the overall connector footprint small for dense PCB layouts.
The mated stacking height is 0.6mm, with a height above board of 0.024" (0.61mm). This is the z-height budget for the mezzanine pair.
Yes, it is RoHS Compliant per the listing.
This part is quoted to order against your BOM quantity.
