What this 0.35mm-pitch header does that a standard 0.5mm part cannot

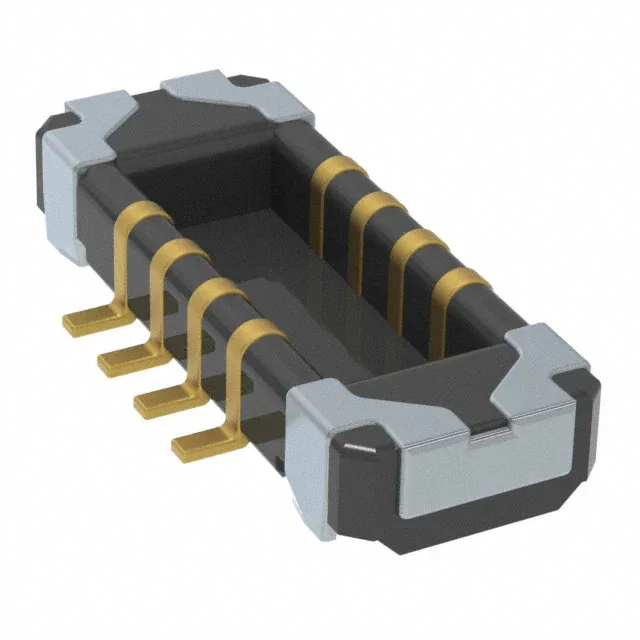

The Hirose BM23FR0.6-8DP-0.35V(895) is an 8-position, dual-row header from the BM23 series, designed for board-to-board stacking at a mated height of 0.6mm. Its defining feature is the 0.014" (0.35mm) pitch — the tightest spacing in the series — which lets you route signals between parallel PCBs in a fraction of the board area a 0.5mm-pitch connector would consume. The outer shroud contacts and solder retention features keep the part registered during reflow, so the footprint stays aligned through the SMT oven. This is a signal-density play: you trade per-contact current capacity (the narrow pitch limits it) for the ability to fit an 8-wide interconnect into a board edge where every mil of real estate is spoken for.
The 0.6mm stack height — why it matters for your z-height budget
At 0.6mm mated stacking height, this connector sits lower than most mezzanine headers. The 0.020" (0.50mm) height above board means the component profile is nearly flush with the PCB surface after soldering. For a smartphone, wearable, or compact IoT module, that 0.6mm gap between boards is often the difference between fitting the battery or not. The dual-row arrangement with 8 positions keeps the footprint compact — each row carries 4 contacts, so the connector body is only about 1.6mm wide, leaving routing channels open on the inner layers.
Sourcing this part — what to expect
The BM23FR0.6-8DP-0.35V(895) is available through independent distribution. The Tape & Reel packaging suits automated pick-and-place lines; cut-tape quantities are also available for prototyping. Confirm the mating half (the corresponding BM23 series receptacle) and the exact position count against your BOM before committing the line.
