Hirose BM28B0.6-16DS/2-0.35V(53)

MPNBM28B0.6-16DS/2-0.35V(53)
Active

Hirose BM28 series receptacle, center strip contacts, 16 positions, 2 rows, 0.014" (0.35mm) pitch, surface mount, gold contact finish 1.97µin, 0.024" (0.61mm) height above board, 0.6mm mated stack height.

$1.2300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

BM28B0.6-16DS/2-0.35V(53) Technical Specifications
ParameterValue
SeriesBM28
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.024\" (0.61mm)
Mated stacking heights0.6mm
Pitch0.014\" (0.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions16
Contact finish thickness1.97µin (0.050µm)

Product details

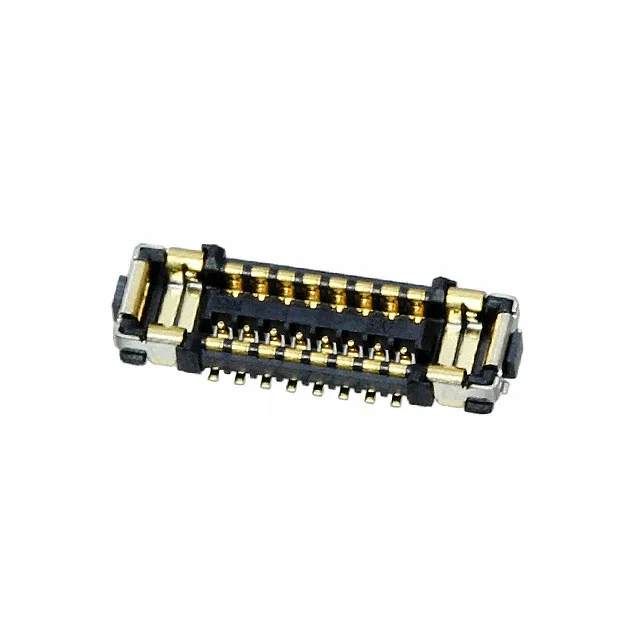

The Hirose BM28B0.6-16DS/2-0.35V(53) is a 16-position receptacle with center strip contacts, part of the BM28 series. It's a board-to-board mezzanine connector built for tight z-height budgets — the mated stack height is 0.6mm, and the height above the board sits at 0.024" (0.61mm). The 0.014" (0.35mm) pitch is the tightest constraint here: it drives the PCB footprint and rules out hand-soldering in production.

16 positions vs the 10-position sibling — same footprint class

The BM28B0.6-16DS/2-0.35V(53) shares the same 0.014" (0.35mm) pitch, 0.024" (0.61mm) height above board, and gold contact finish with the 10-position BM28B0.6-10DS/2-0.35V(53). The difference is 16 circuits against 10 — match the position count to your circuit count. Both use the same footprint class, so a board laid out for the 10-position version won't accept the 16-position without a layout change.

Frequently asked questions

Will BM28B0.6-16DS/2-0.35V(53) drop into a board laid out for BM28B0.6-10DS/2-0.35V(53)?

No — the 16-position version has a different footprint than the 10-position sibling. Both share the same 0.35mm pitch and 0.61mm height above board, but the position count difference means the PCB layout must match the circuit count.

Where can I buy BM28B0.6-16DS/2-0.35V(53) and what is the lead time?

This part is sourced to order against your RFQ.
