Hirose Electric Co Ltd BNC-J-1.5CR(40) — RF / Coaxial Connectors
Hirose Electric Co Ltd

Hirose BNC-J-1.5CR(40) BNC Jack, 50 Ohm, 1 GHz, Crimp/Solder

MPNBNC-J-1.5CR(40)
Active

Hirose BNC-J-1.5CR(40) BNC jack, female socket, 50 Ohm, 1 GHz, crimp shield termination, solder contact, free-hanging in-line mount, silver center contact plating, nickel body finish.

$23.5400Ref. price · indicative, final on quote
BNC-J-1.5CR(40) datasheet
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

BNC-J-1.5CR(40) Technical Specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max1 GHz
Cable group1.5C-2V, 1.5D-2V
Operating temperature-30°C~60°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Heat Shrink, 1 Sleeve
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingSilver

Product details

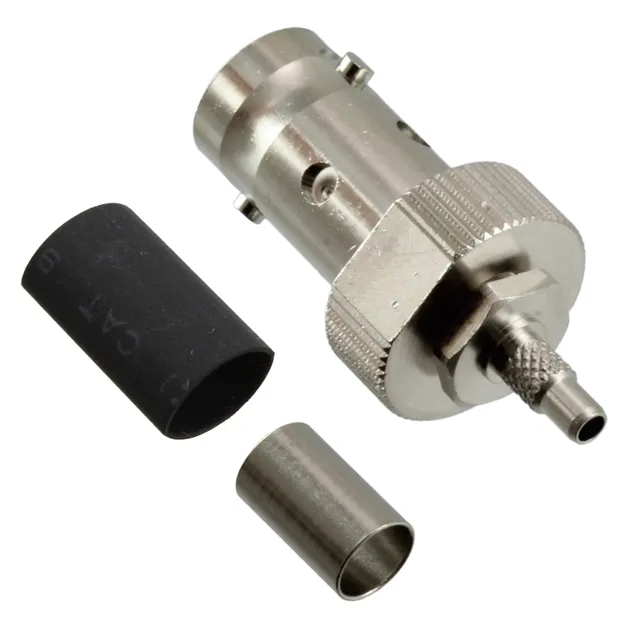

The Hirose BNC-J-1.5CR(40) is a 50 Ohm BNC jack, female socket, designed for free-hanging in-line installation on 1.5C-2V or 1.5D-2V coaxial cable. It comes as a three-piece kit: the connector body, a heat shrink tube for sealing the cable entry, and a sleeve that slips over the crimp ferrule.

Signal performance and frequency ceiling

Rated to 1 GHz maximum frequency, this jack handles the full L-band for GPS, ISM-band gear at 915 MHz, and most cellular bands below 1 GHz. The center contact is beryllium copper with silver plating — good conductivity and spring retention through the 500 mating cycles the bayonet lock is rated for. If your signal path runs above 1 GHz, this isn't the right part — look for a BNC rated to 4 GHz or an SMA.

Frequently asked questions

What is the impedance of BNC-J-1.5CR(40)?

Critical for matching system impedance to avoid signal reflection.

Where can I buy BNC-J-1.5CR(40) in stock?

Sourcing buyers need immediate availability to avoid production delays.

Is BNC-J-1.5CR(40) interchangeable with other BNC jacks?

Design engineers need to know if they can substitute without redesign.

What cable types work with BNC-J-1.5CR(40)?

Maintenance techs need correct cable for repair.

Does BNC-J-1.5CR(40) include the sleeve and heat shrink?

Buyers need to know if additional components must be purchased separately.

What is the lifecycle status of BNC-J-1.5CR(40)?

Brokers check obsolescence to avoid supply risk.
