Hirose Electric Co Ltd BNC-P-3DV-SA(40) — RF / Coaxial Connectors

Hirose BNC-P-3DV-SA(40) BNC Plug, 50 Ohm, 500 MHz, Last Buy

MPNBNC-P-3DV-SA(40)
Last Buy

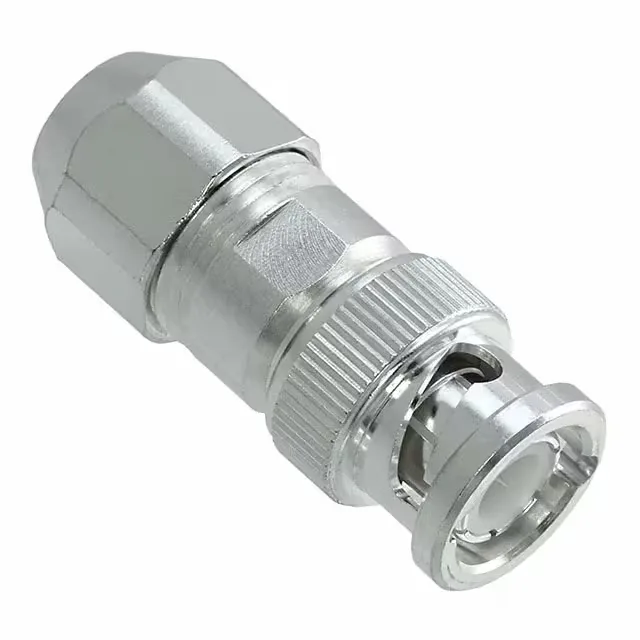

Hirose BNC-P-3DV-SA(40) BNC plug, male pin, 50 Ohm, 500 MHz max, silver-plated brass body, solder contact, bayonet lock, for 3C-2V/3D-2V cable, Bulk.

$27.8400Ref. price · indicative, final on quote
Hirose Electric Co Ltd BNC-P-3DV-SA(40) datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

BNC-P-3DV-SA(40) specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max500 MHz
Cable group3C-2V, 3D-2V
Operating temperature-30°C~60°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance50Ohm
Body finishSilver
Mating cycles1000
Number of ports1
Shield terminationClamp
Contact terminationSolder
Center contact platingSilver

Product details

Last-Buy BNC Plug for 3C-2V / 3D-2V Cable

The Hirose BNC-P-3DV-SA(40) is a BNC-style plug with a male pin contact, designed for field termination onto 3C-2V and 3D-2V coaxial cables. The silver-plated brass body and center contact, combined with a PTFE dielectric, give it a corrosion-resistant signal path suited for indoor or protected outdoor equipment where the -30°C to 60°C operating range applies. This part is in Last Buy status — the manufacturer has announced end-of-life, and remaining stock is being drawn down. No official direct replacement is listed on the manufacturer's record, so buyers should plan for a last-time buy or qualify a substitute before existing stock runs out.

The connector is listed for 3C-2V and 3D-2V cables.

Frequently asked questions

Is BNC-P-3DV-SA(40) compatible with 3D-2V cable?

Yes, the BNC-P-3DV-SA(40) is listed for use with 3C-2V and 3D-2V coaxial cables. The shield clamp and solder center contact are sized for those cable diameters.

Where can I buy BNC-P-3DV-SA(40) today?

This Last Buy part is sourced to order through independent distribution against an RFQ. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
