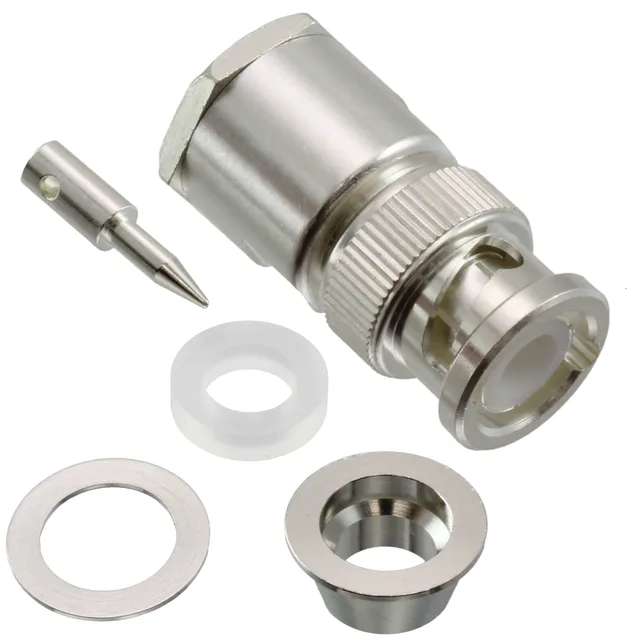

Hirose BNC-P-5DV(40) — BNC Plug for Coaxial Cable Termination
The silver-plated brass body and centre contact give a corrosion-resistant RF path, while the PTFE dielectric maintains consistent impedance through the connector.
Lifecycle Status — Last Buy Notice
The BNC-P-5DV(40) is officially listed as Last Buy by Hirose. This means the part is in its final production run and will not be manufactured after the remaining inventory is depleted. For new designs or long-term production, a cross-reference search against standard BNC plugs from other manufacturers is recommended — the 50 Ohm, 4 GHz, silver-plated, solder/clamp termination profile is a common specification that several vendors cover.
Mating Interface and Termination
The 1000 mating cycle rating is high for a BNC connector, indicating the silver-plated brass contact and body can tolerate frequent connect/disconnect cycles without excessive wear. Termination is solder for the centre pin and a clamp for the shield braid; the clamp secures the cable jacket and provides strain relief. No crimp tool is required, but a soldering iron and basic coaxial prep tools are needed.
Sourcing for BNC-P-5DV(40)
For a BOM line that requires this exact Hirose order code, submit an RFQ; the supply posture will reflect remaining factory or distributor inventory.
