Hirose Electric Co Ltd CX90BW-16P

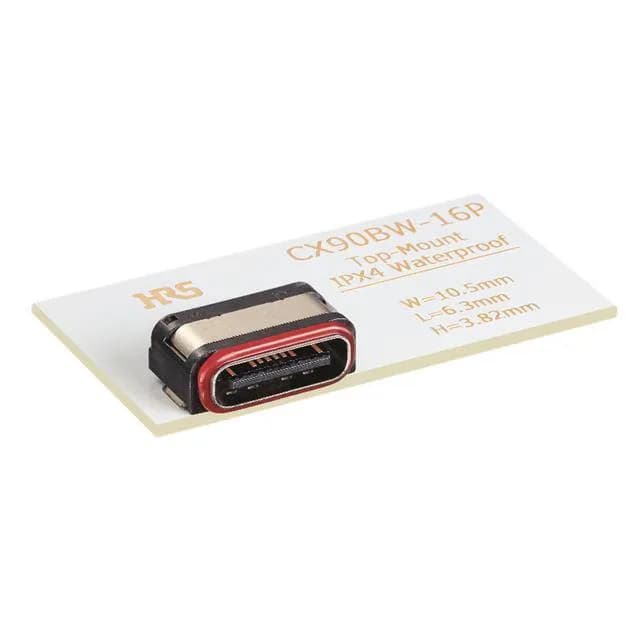

CX90BW-16P USB-C Receptacle, Waterproof, 10000 Cycles

MPN CX90BW-16P
Active

Hirose CX series USB-C (USB TYPE-C) receptacle, CX90BW-16P, 24 (16+8 Dummy) contacts, waterproof, shielded, gold-plated contacts, rated 20VAC, 10000 mating cycles, -40°C to 85°C, UL94 V-0.

$2.5200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

CX90BW-16P key specifications
ParameterValue
SeriesCX
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB-C (USB TYPE-C)
Voltage - rated20VAC
Positions24 (16+8 Dummy)
IP ratingWaterproof
Mounting featureHorizontal, Reversible
Operating temperature-40°C~85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

CX90BW-16P additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB-C Receptacle with a 10,000-Cycle Life

The Hirose CX90BW-16P is a USB-C (USB TYPE-C) receptacle from the CX series, built for applications where a standard USB-C connector won't hold up. It carries 24 contacts arranged as 16+8 dummy — the full USB-C complement for power and data, with the dummy positions handling the CC and sideband signals. The waterproof rating means this connector seals against moisture ingress when mated with a matching CX series plug, making it a candidate for outdoor kiosks, industrial handhelds, or any enclosure that sees washdown or rain. Rated for 10000 mating cycles, this receptacle outlasts typical consumer USB-C connectors by a wide margin. The gold-plated contacts and shielded steel shell are designed for that kind of duty — the plating resists corrosion over repeated insertions, and the shell provides the EMI containment needed for USB 2.0 signal integrity.

The CX90BW-16P supports two mounting styles: surface mount, right angle and through-hole. The solder termination is compatible with reflow for the SMT variant or wave solder for the through-hole version — pick the one that matches your assembly line. The horizontal, reversible mounting feature is inherent to the USB-C form factor, meaning the plug can be inserted either way up.

Voltage and Environmental Ratings

Rated at 20VAC. The steel and stainless shielding material provides mechanical robustness and a solid ground path for the shield current.
