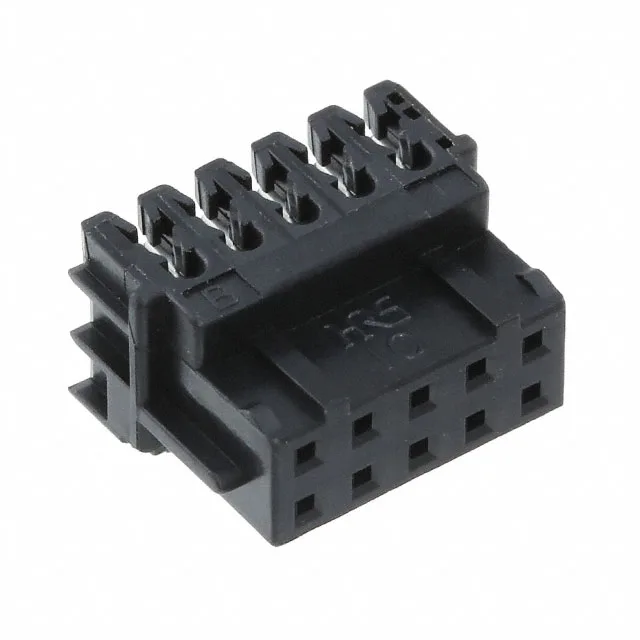

The Hirose DF11-10DS-2R26(05) is a 10-position, dual-row IDC receptacle from the DF11 series, terminated to discrete 26 AWG wire via a single press operation. The 2.00 mm pitch and 0.079" row spacing match the standard DF11 header footprint, making this the cable-side half for a board-to-wire interconnect in compact consumer, industrial, or automotive interior harnesses. The closed-end housing prevents stubbing during mating and provides a positive stop against the header shroud.
Last Buy Status — Plan the BOM Window
The DF11-10DS-2R26(05) carries a Last Buy lifecycle status, meaning Hirose has scheduled end-of-production. This is not an active, open-ended availability part — orders must be placed within the manufacturer's last-time-buy window. No official successor part number is listed on the lifecycle record, so a direct pin-compatible drop-in from Hirose is not documented.
IDC Termination and 26 AWG Wire Match
The 26 AWG wire gauge is specified for the contact slot geometry; using a different gauge risks an unreliable gas-tight joint.
Mating Half and Harness Assembly
The black, closed-end housing is keyed by the header shroud profile, preventing a 180-degree mis-mate.
