Hirose Electric Co Ltd DF11-14DS-2C(20) — Connector Housings
Hirose Electric Co Ltd

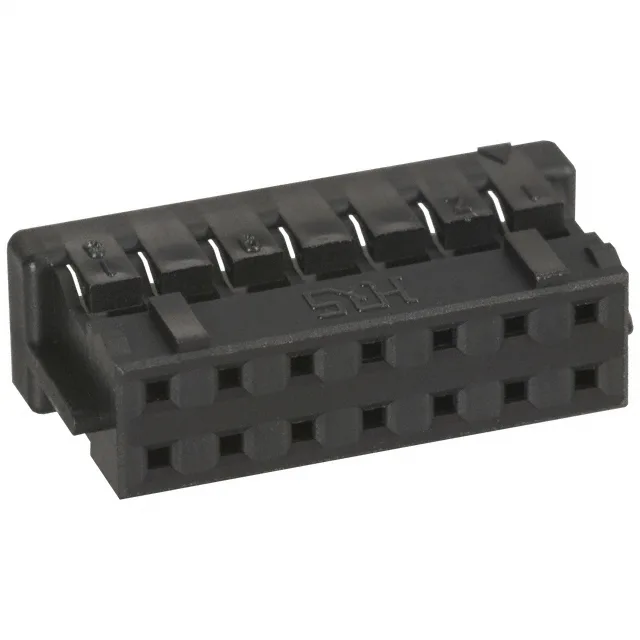

Hirose DF11-14DS-2C(20) Receptacle Housing, 14 Pos, 2.00mm

MPNDF11-14DS-2C(20)
Active

Hirose DF11 series receptacle housing, DF11-14DS-2C(20), 14 positions, 2 rows, 0.079" (2.00mm) pitch, black PA nylon, crimp termination, free-hanging, contacts not included.

$0.4800Ref. price · indicative, final on quote
DF11-14DS-2C(20) datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF11-14DS-2C(20) Technical Specifications
ParameterValue
SeriesDF11
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-30°C ~ 85°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions14

Product details

14-Position Dual-Row Receptacle Housing for DF11 Series

The Hirose DF11-14DS-2C(20) is a 14-position, dual-row receptacle housing from the DF11 series, designed for wire-to-board interconnects on a 2.00mm pitch. The black polyamide (PA) nylon body is rated for -30°C to 85°C, suitable for indoor electronics, automotive cabin, and industrial control applications where a compact, reliable disconnect point is needed.

Pitch and Position Count — BOM Fit Check

At 14 positions on a 2.00mm pitch, this housing matches the footprint of the DF11 series pin headers. Compared to the 12-position DF11-12DS-2C or the 16-position DF11-16DS-2C, the 14-position variant fills the middle ground — useful when the circuit count falls between standard 12 and 16 positions.

This is standard for DF11 housings; it lets you choose the wire gauge and plating grade (gold vs tin) that match your current and cycle-life requirements. The housing accepts the terminals after crimping, and the dual-row layout means 14 individual crimp operations per connector half.

Frequently asked questions

Where can I buy DF11-14DS-2C(20) available via RFQ confirmation?

Availability is confirmed at quote time — submit a request for current pricing and lead time on your target quantity.

Does DF11-14DS-2C(20) include contacts?

No — the housing ships without contacts. The listing explicitly notes 'Contacts Not Included'. You must order the matching DF11 series female socket crimp terminals separately.
