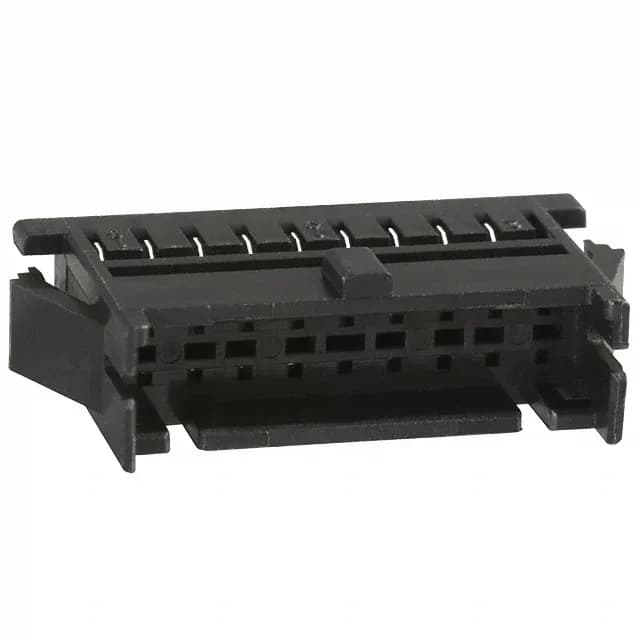

Hirose DF11 series plug housing, 18 positions, 2 rows, 2.00mm pitch, panel mount snap-in, crimp termination, male pin contacts, black PA nylon, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | DF11 |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Operating temperature | -30°C ~ 85°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 18 |
Typical applications include internal signal and low-power wiring in industrial controls, office equipment, and consumer electronics where a reliable, keyed connection is needed.
This is a panel-mount housing with a snap-in feature — it locks into a panel cutout without hardware.
No official second-source or replacement part is listed; the DF11 series is Hirose's own design.
The DF11-18DEP-2C accepts DF11 series male pin crimp terminals. Contacts are not included with this housing and must be ordered separately. The exact terminal part number depends on the wire gauge you are using — refer to the DF11 series crimp terminal selection for the correct fit.
