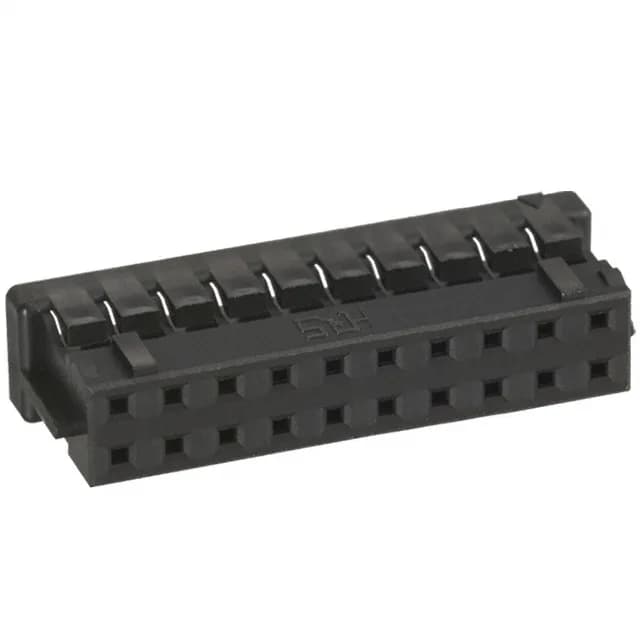

Hirose DF11 series receptacle housing, DF11-20DS-2C, 20 positions, 2 rows, 0.079" (2.00mm) pitch, crimp termination, free hanging, black, ROHS3.
| Parameter | Value |
|---|---|
| Series | DF11 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -30°C ~ 85°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 20 |
The Hirose DF11-20DS-2C is a 20-position, 2-row receptacle housing in the DF11 series, designed for wire-to-board interconnects at a 0.079" (2.00 mm) pitch.
This receptacle mates with Hirose DF11 series pin headers at a 0.079" (2.00mm) pitch and dual-row layout.
The DF11-20DS-2C is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.
The DF11-20DS-2C accepts female socket crimp terminals from the Hirose DF11 series (such as DF11-*SC or DF11-*SCA parts). The housing ships without contacts — they must be ordered separately.
The mating pin header is the Hirose DF11-20DP-2D series (dual-row, 20 positions, 2.00 mm pitch), available in straight and right-angle configurations.
