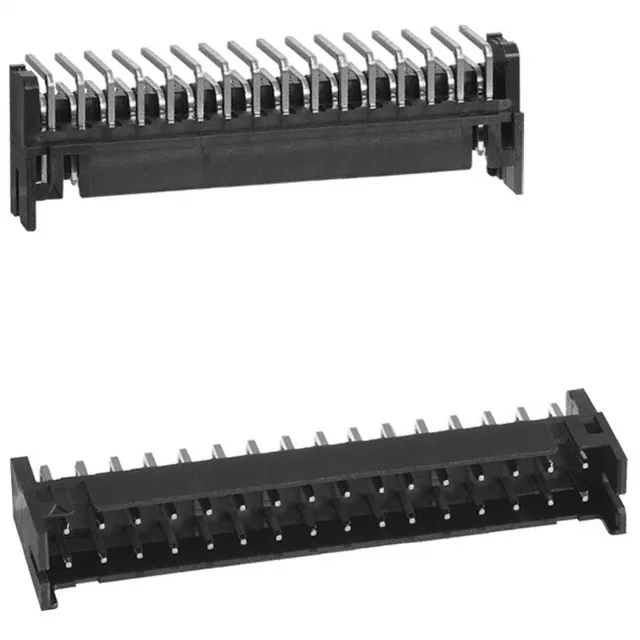

Hirose Electric Co Ltd DF11-32DP-2DS(22)
MPNDF11-32DP-2DS(22)
Obsolete
$4.3700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF11 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 2A |
| Operating temperature | -30°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 32 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.118\" (3.00mm) |
