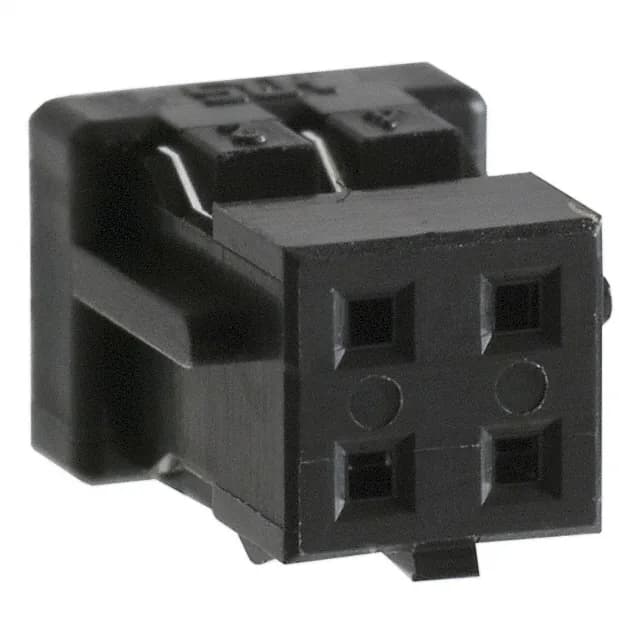

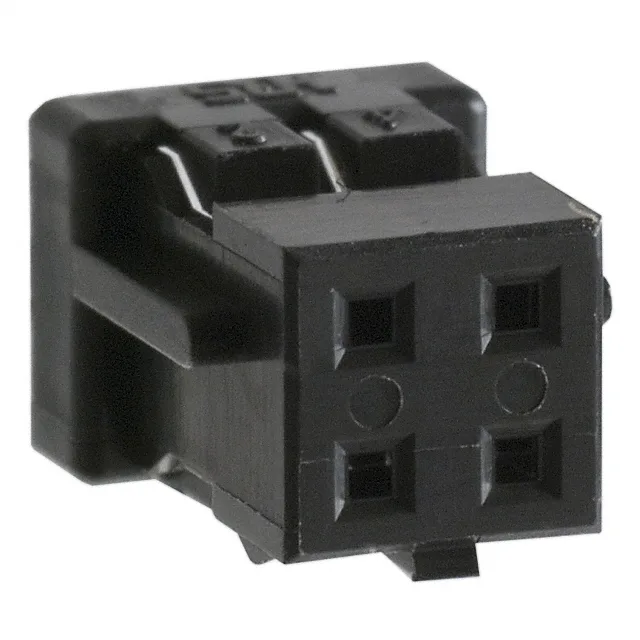

Hirose DF11 series receptacle housing, DF11-4DS-2C, 4 positions, dual row, 0.079" (2.00mm) pitch, free hanging (in-line), crimp termination, black polyamide nylon.
| Parameter | Value |
|---|---|
| Series | DF11 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -30°C ~ 85°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 4 |
The Hirose DF11-4DS-2C is a 4-position, dual-row receptacle housing from the DF11 series, on a 0.079" (2.00mm) pitch.
The 2.00mm dual-row layout gives 4 circuits in a compact footprint, with the row spacing matching the pitch at 0.079" (2.00mm). For a 4-position wire harness, you need the DF11-4DS-2C housing plus 4 crimp socket contacts and the mating pin header.
The DF11-4DS-2C is a bare housing — contacts are not included. It accepts DF11 series female socket crimp terminals, which must be ordered separately. The specific terminal part number depends on the wire gauge; refer to the Hirose DF11 crimp terminal datasheet for the correct match.
The DF11-4DS-2C receptacle mates with Hirose DF11 series dual-row pin headers of the same 4-position, 2.00mm pitch layout. The header is a separate order code.
