Dual-Row 2.00 mm Pitch Receptacle Housing for DF11 Wire-to-Board Systems

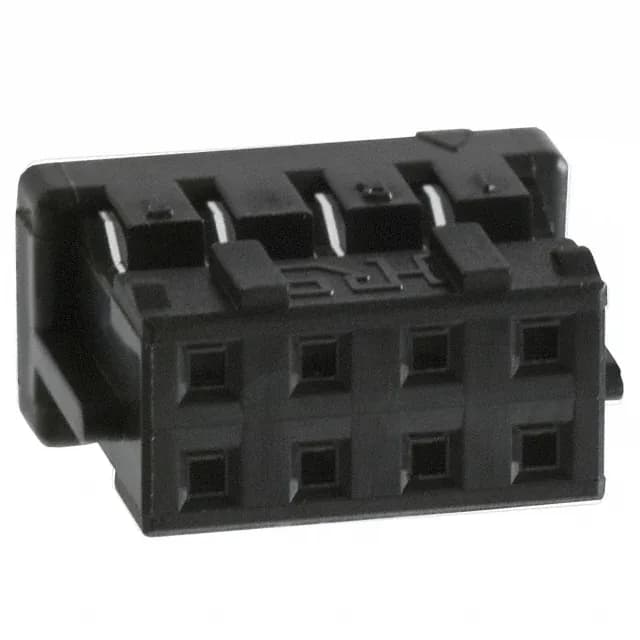

The Hirose DF11-8DS-2C is an 8-position, dual-row receptacle housing from the DF11 series, designed for 2.00 mm pitch wire-to-board interconnects.
The 8 positions in 2 rows (4 per row) mean the mating header will have a 4 x 2 pin array; confirm your BOM circuit count matches before specifying the header. Because the housing is free-hanging (in-line), the wire harness routes directly to the mating board-mounted header without a secondary shell or backshell. The crimp termination allows field-replaceable contacts — if a terminal pulls out or frets, you re-crimp and reinsert rather than scrapping the whole harness.
You must order the matching DF11 female socket crimp terminal (e.g., Hirose DF11-*SC or DF11-*PC series, depending on wire gauge) and crimp it onto your wire before insertion. The crimp terminal's wire range, plating, and current rating govern the assembly's performance; the housing itself is just the mechanical shell. For the crimp process, the DF11 terminal has a published crimp height window — section a sample under a microscope to verify the strands are fully captured and the insulation is properly stripped. Wrong die or wrong crimp height will cause intermittent contact or pull-out in vibration.
