Hirose DF12 Series, Header, Outer Shroud Contacts, 60 Positions, 0.020" (0.50mm) Pitch, 2 Rows, 0.110" (2.80mm) Height Above Board, Surface Mount, Gold, 8.00µin (0.203µm) Contact Finish, Solder Retention, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | DF12 |
| Mounting | Surface Mount |
| Connector type | Header, Outer Shroud Contacts |
| Height above board | 0.110\" (2.80mm) |
| Mated stacking heights | 3.5mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 60 |
| Contact finish thickness | 8.00µin (0.203µm) |

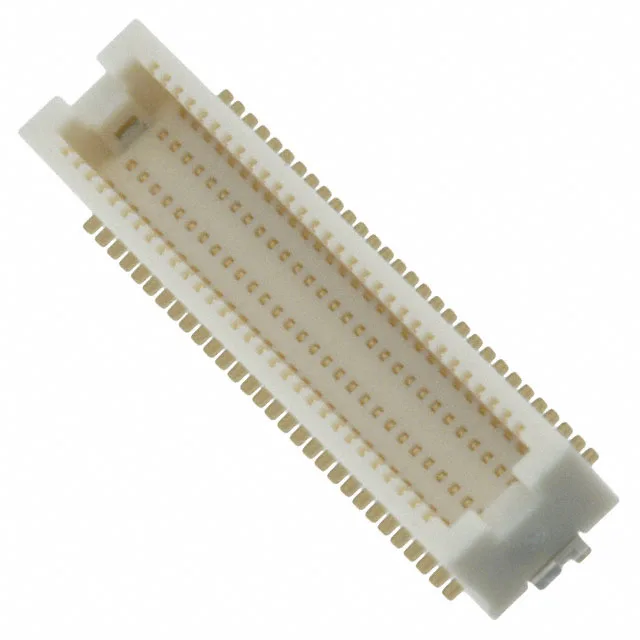

The Hirose DF12B(3.5)-60DP-0.5V(86) is a 60-position header from the DF12 series, designed for board-to-board mezzanine stacking.
It mates with the corresponding DF12 receptacle that has the matching 3.5mm stack height. The SMT termination means it reflows onto the board pads alongside other surface-mount components; the solder retention feature adds mechanical hold during the solder process.
This part is obsolete; we source it to order against your RFQ.
