Hirose Electric Co Ltd DF12B(5.0)-60DP-0.5V(86) — Board-to-Board Connectors

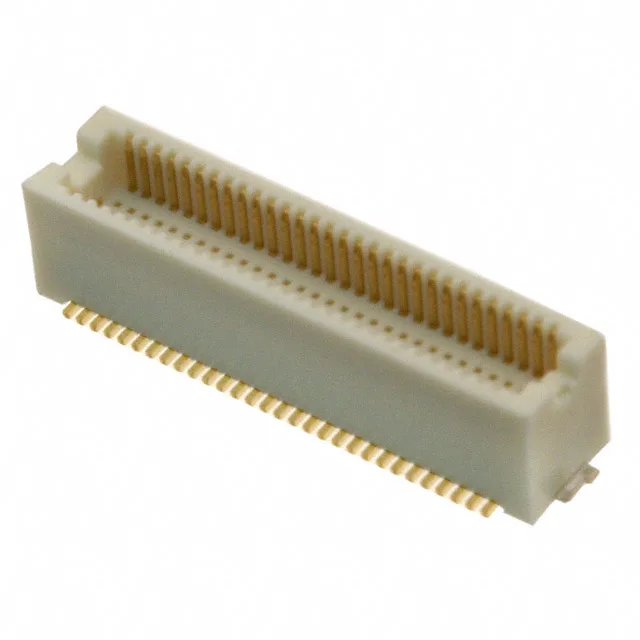

DF12B(5.0)-60DP-0.5V(86) Board-to-Board Connector – 0.50mm

MPNDF12B(5.0)-60DP-0.5V(86)
Obsolete

Hirose DF12 series, Header Outer Shroud Contacts, 60 positions, 0.020" (0.50mm) pitch, dual-row, surface mount, gold-plated contacts, 5mm mated stack height, solder retention features.

$1.8800Ref. price · indicative, final on quote
Hirose Electric Co Ltd DF12B(5.0)-60DP-0.5V(86) datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

DF12B(5.0)-60DP-0.5V(86) specifications
ParameterValue
SeriesDF12
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.169\" (4.30mm)
Mated stacking heights5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions60
Contact finish thickness8.00µin (0.203µm)

Product details

What this mezzanine header does

The DF12B(5.0)-60DP-0.5V(86): This is a 60-position, dual-row header from Hirose's DF12 series, pitched at 0.50mm and designed for a 5mm mated stack height — a common spacing for compact mezzanine boards in portable electronics and telecom modules.

Obsolete — sourcing path

Hirose has marked this part as Obsolete. No direct successor is listed in the DF12 series, so the BOM position needs a pin-compatible alternative or a last-time buy.

Surface-mount termination with a 0.50mm pitch demands careful trace fan-out — a 60-position dual-row layout on a 5mm stack height leaves limited room for vias between pads. The 0.169" (4.30mm) height above board and 5mm mated stack height set the z-axis clearance between stacked PCBs.

Frequently asked questions

How can I order DF12B(5.0)-60DP-0.5V(86) or check stock?

This part is Obsolete per Hirose. We source it against an RFQ — submit your BOM quantity and we'll confirm availability and current pricing at quote time. No stock-holding claim is made here.

What is the exact replacement for DF12B(5.0)-60DP-0.5V(86)?

Hirose has not published a direct successor for this DF12 series header. The closest pin-compatible alternative would be another DF12 series header with the same 0.50mm pitch, 60 positions, dual rows, and 5mm mated stack height — but confirm the contact finish and solder retention features against your design.

Does DF12B(5.0)-60DP-0.5V(86) support a 5mm stacking height?

Yes, the listed mated stack height is 5mm, matching the (5.0) in the order code.
