The DF12D(5.0)-36DP-0.5V(81): The outer shroud contacts and board guide help align the mating halves during assembly, which matters when you're stacking boards blind in a tight chassis. The mated stack height is 5 mm, so the two PCBs sit exactly that far apart.
DF12D(5.0)-36DP-0.5V(81) Board-to-Board Connector, Obsolete
MPNDF12D(5.0)-36DP-0.5V(81)
Obsolete

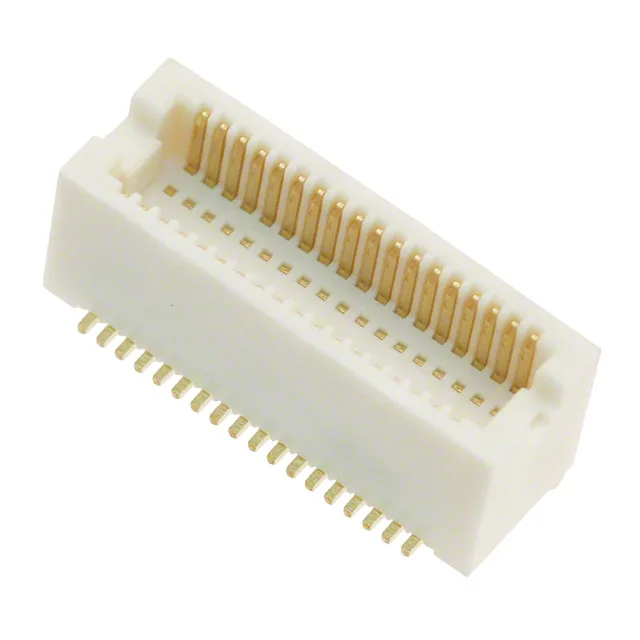

Hirose DF12 series, DF12D(5.0)-36DP-0.5V(81), 0.020" (0.50 mm) pitch, 36 positions, 2 rows, header with outer shroud contacts, surface mount, 5 mm mated stack height, gold contact finish, tape and reel packaging.
$1.0454Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF12 |
| Mounting | Surface Mount |
| Connector type | Header, Outer Shroud Contacts |
| Height above board | 0.169\" (4.30mm) |
| Mated stacking heights | 5mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
Product details
Frequently asked questions
How can I order DF12D(5.0)-36DP-0.5V(81) or check stock?
Submit an RFQ with your target quantity. The part is obsolete, so we source it from our multi-supplier network — no firm stock or price on the page, but we'll confirm availability and current pricing at quote time.
Does DF12D(5.0)-36DP-0.5V(81) have a compatible mating connector?
Yes — it mates with the matching DF12 series receptacle (outer shroud contacts). The mated stack height is 5 mm, so the receptacle must also be specified for that height.
