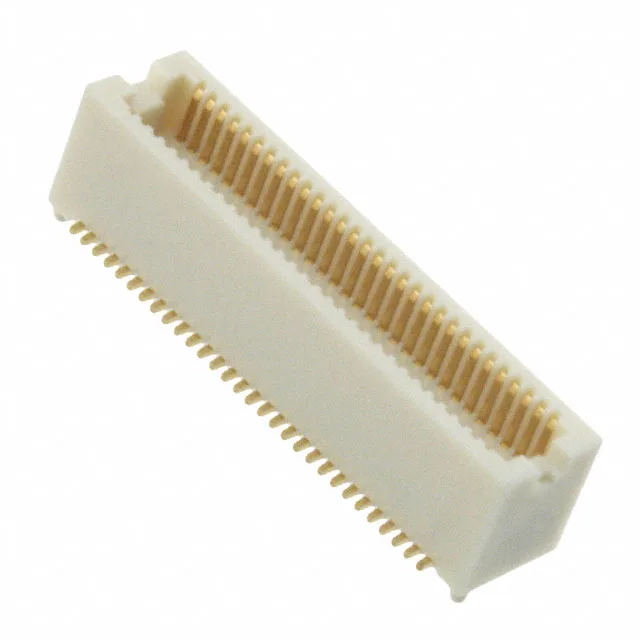

The DF12D(5.0)-60DP-0.5V(80): This is a 60-position, dual-row header from the DF12 series, on 0.020" (0.50 mm) pitch — a dense footprint that routes cleanly on a 4-layer board with micro-vias. The mated stacking height is 5 mm, which sets the board-to-board spacing for a mezzanine pair. The connector type is Header, Outer Shroud Contacts, surface mount, with a Board Guide feature for alignment during reflow. Gold contact finish suits repeated mating cycles in test or field-service equipment.
Fit and mating half
Mates with the DF12 series receptacle (female) counterpart at the same 0.50 mm pitch and 60 positions. The 5 mm stack height is the mated dimension — confirm the receptacle part number for your BOM. The outer shroud protects the contacts during handling and mating.
