Hirose Electric Co Ltd DF12E(3.0)-20DP-0.5V(81) — Board-to-Board Connectors

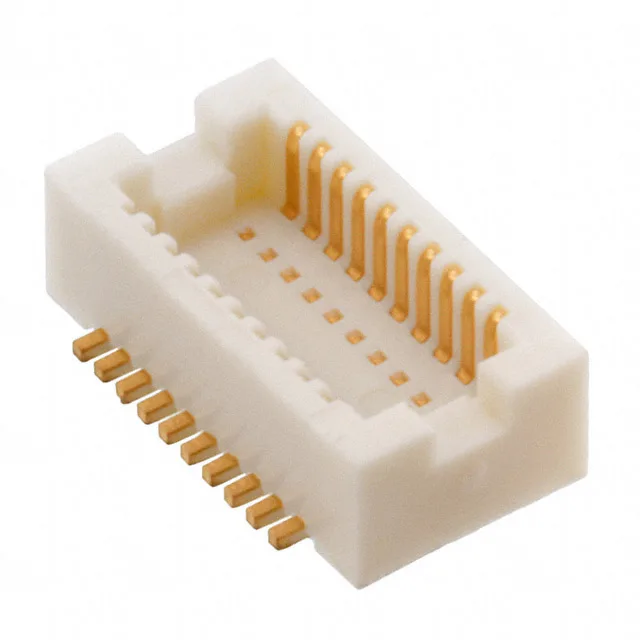

Hirose DF12E(3.0)-20DP-0.5V(81) Header, 20 Pos, 0.50mm Pitch

MPNDF12E(3.0)-20DP-0.5V(81)
Obsolete

Hirose DF12 series, 20-position header, 0.50mm pitch, 2 rows, surface mount, gold-plated contacts, 3mm mated stacking height.

$1.3200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

DF12E(3.0)-20DP-0.5V(81) specifications
ParameterValue
SeriesDF12
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.091\" (2.30mm)
Mated stacking heights3mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions20
Contact finish thickness8.00µin (0.203µm)

Product details

The Hirose DF12E(3.0)-20DP-0.5V(81) is a 20-position, 2-row board-to-board mezzanine header with a 0.50 mm pitch.

The 20 positions in two rows give a compact footprint roughly 5 mm by 2.30 mm above the board.

Replacement and Cross-Reference

The DF12 series includes many 20-position, 0.50 mm pitch headers with varying stacking heights and plating options — but without a documented cross-reference from Hirose, any substitution must be verified against the original board layout and mating receptacle. The closest parametric match within the DF12 family would share the 20 positions, 0.50 mm pitch, 2 rows, and 3 mm stacking height, but the exact part number depends on the specific variant suffix.

Frequently asked questions

Where can I buy the DF12E(3.0)-20DP-0.5V(81)?

The DF12E(3.0)-20DP-0.5V(81) is an obsolete part. Submit an RFQ for the specific quantity needed.

What is the replacement for the DF12E(3.0)-20DP-0.5V(81)?

Any substitute must be verified against the original board layout, pitch, position count, and 3 mm stacking height.
