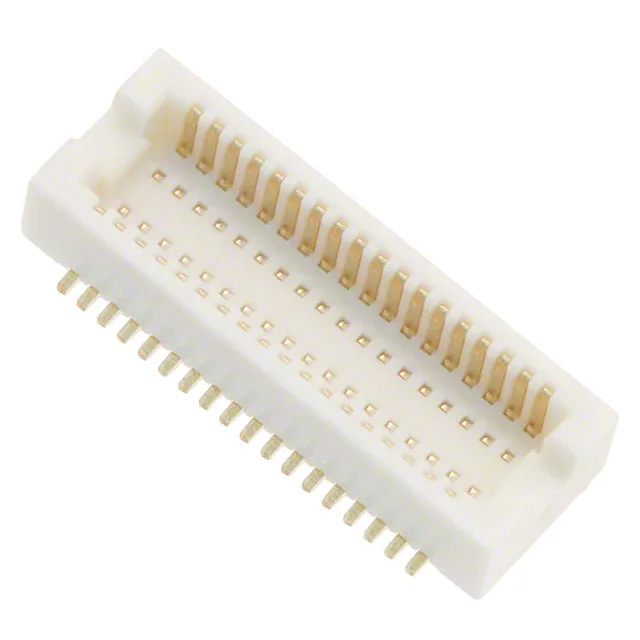

Hirose DF12 series, 36-position (2-row) header with outer shroud contacts, 0.020" (0.50mm) pitch, 3mm mated stacking height, surface mount, gold-plated contacts.
| Parameter | Value |
|---|---|
| Series | DF12 |
| Mounting | Surface Mount |
| Connector type | Header, Outer Shroud Contacts |
| Height above board | 0.091\" (2.30mm) |
| Mated stacking heights | 3mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 8.00µin (0.203µm) |
The Hirose DF12E(3.0)-36DP-0.5V(81) is a 36-position, 2-row surface-mount header from the DF12 series, designed for board-to-board mezzanine stacking. The 0.50mm pitch supports high-density routing on the PCB.
The 0.50mm pitch and 36 positions in a 2-row layout define the PCB footprint — each row carries 18 contacts. Surface-mount termination suits automated pick-and-place assembly.
The pitch is 0.020" (0.50mm), which is a fine-pitch spacing for high-density board-to-board interconnects.
The specified mated stacking height is 3mm, defining the gap between the two parallel PCBs when mated with the corresponding receptacle.
