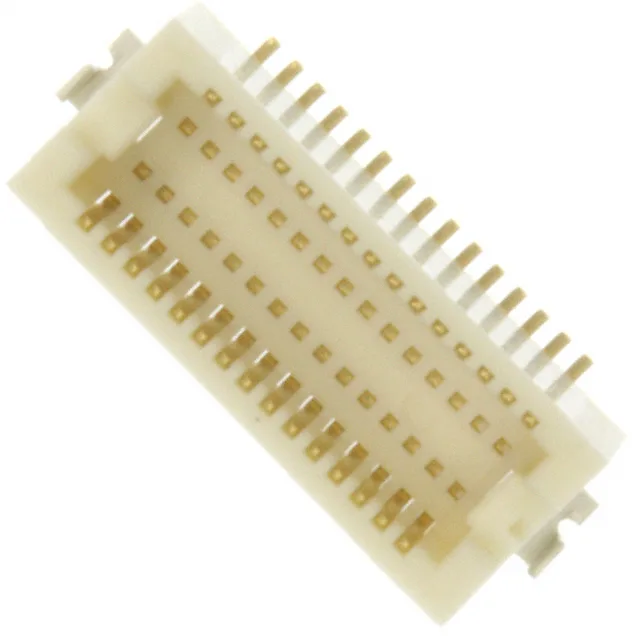

Hirose Electric Co Ltd DF12(4.0)-30DP-0.5V(81) — Board-to-Board Connectors

DF12(4.0)-30DP-0.5V(81) Obsolete – Hirose 30-Pos 0.5mm

MPNDF12(4.0)-30DP-0.5V(81)
Obsolete

Hirose DF12 series, 0.50mm pitch, 30-position header, outer shroud contacts, surface mount, gold plating, 4mm mated stacking height

$1.6900Ref. price · indicative, final on quote
Hirose Electric Co Ltd DF12(4.0)-30DP-0.5V(81) datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

DF12(4.0)-30DP-0.5V(81) specifications
ParameterValue
SeriesDF12
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.130\" (3.30mm)
Mated stacking heights4mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR)
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions30

Product details

30-position 0.50mm pitch header – what it is

The DF12(4.0)-30DP-0.5V(81): This is a Hirose DF12 series header, 30 positions in two rows on a 0.50mm pitch, with outer shroud contacts and gold plating.

Obsolete – sourcing and replacement path

This part is marked obsolete. No official successor is listed on the record, so a pin-compatible alternative within the DF12 series is the first place to look.

The solder retention feature resists shear force from the mating receptacle during vibration or cable strain.

Frequently asked questions

Where can I buy DF12(4.0)-30DP-0.5V(81) and how do I get a price?

This part is obsolete, so it is not held available via RFQ confirmation. We source it per RFQ from our supply network – submit a request with your target quantity and we will confirm availability and pricing at quote time.
