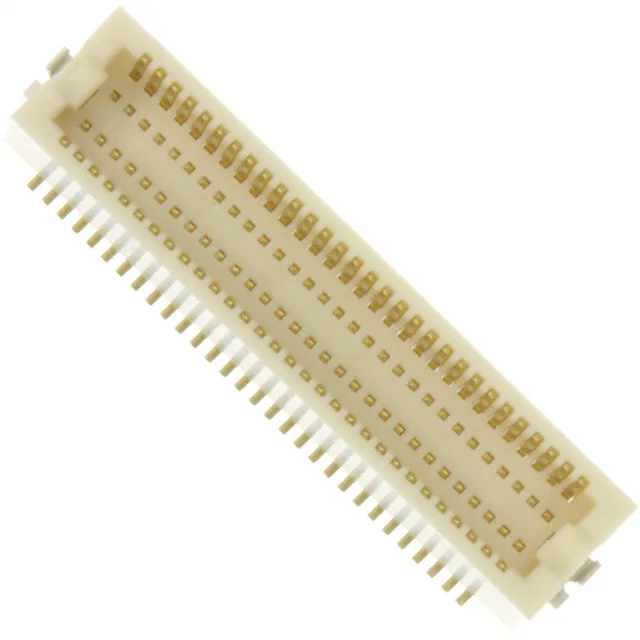

The Hirose DF12(5.0)-60DP-0.5V(86) is a 60-position, dual-row header from the DF12 series, designed for board-to-board mezzanine stacking. The 0.020" (0.50mm) pitch packs 60 circuits into a compact footprint — the tight pitch is the first thing to check against your board layout, because it demands a fine-line PCB fab and leaves little room for escape routing between pads. Gold plating on the contacts (8.00µin thickness) gives a reliable connection for moderate mating-cycle duty — think production test fixtures or field-replaceable modules, not daily hot-swap.
5mm stacking height — the z-height budget
That 5mm is the z-height budget for your mezzanine assembly — it determines the clearance needed inside the enclosure and the standoff height for the board stack. The header itself stands 0.169" (4.30mm) above its own board surface before mating, so the receptacle side contributes the remaining height to reach the full 5mm stack.
Two features on this header make it easier to handle on the SMT line. The board guide — a pair of plastic posts — aligns the connector to the PCB footprint during placement, preventing skew before reflow. The solder retention features (often small tabs or bumps on the metal shield) hold the part in place through the reflow oven, resisting the surface tension of molten solder that can pull small connectors out of position. For a 60-position part at 0.50mm pitch, that alignment matters — a misaligned header by half a pad pitch means an entire row of opens.
Mating half — what it plugs into
The outer shroud on the header fits inside the receptacle's shroud, aligning the contacts and providing strain relief at the mated interface. The board guide posts on the header align with corresponding holes on the receptacle board during assembly.
