Hirose Electric Co Ltd DF17(2.5)-26DP-0.5V(57) — Mezzanine & Stacking Connectors

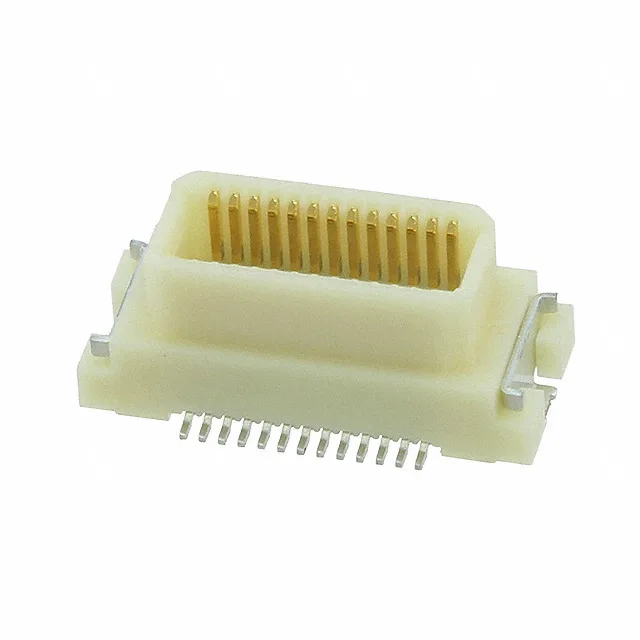

Hirose DF17(2.5)-26DP-0.5V(57) Header, 26 Pos, 0.50mm Pitch

MPNDF17(2.5)-26DP-0.5V(57)
Active

Hirose DF17 series header, 26 positions, 0.020" (0.50mm) pitch, 2 rows, gold-plated contacts, surface mount, mated stack heights 5.5mm and 6.5mm, with board guide and solder retention.

$2.3500Ref. price · indicative, final on quote
Hirose Electric Co Ltd DF17(2.5)-26DP-0.5V(57) datasheet (PDF)
RoHSRoHS Compliant
SeriesDF17
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DF17(2.5)-26DP-0.5V(57) specifications
ParameterValue
SeriesDF17
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.189\" (4.80mm)
Mated stacking heights5.5mm, 6.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions26

Product details

0.50mm Pitch Board-to-Board Header for Tight Stack Heights

The Hirose DF17(2.5)-26DP-0.5V(57) is a 26-position header from the DF17 series, designed for parallel board-to-board stacking. The connector supports mated stack heights of 5.5mm or 6.5mm, which sets the board spacing for the assembly — pick the height that matches your mezzanine gap.

26 Circuits at 0.50mm Pitch vs 30-Circuit Sibling

At the same 0.020" (0.50mm) pitch and gold-plated contacts, the 26-position DF17(2.5)-26DP-0.5V(57) shares its footprint class with the 30-position DF17(2.0)-30DP-0.5V(57) — the difference is circuit count, not board real estate. The 26-position member uses a shorter body length, so the decision is purely about matching the BOM position count. Both are active and RoHS compliant.

Frequently asked questions

What is the stacking height for DF17(2.5)-26DP-0.5V(57)?

The DF17(2.5)-26DP-0.5V(57) supports mated stack heights of 5.5mm and 6.5mm, depending on the mating receptacle used.

Is DF17(2.5)-26DP-0.5V(57) RoHS compliant?

Yes, the DF17(2.5)-26DP-0.5V(57) is RoHS compliant.

What is the pitch of DF17(2.5)-26DP-0.5V(57)?

The pitch is 0.020" (0.50mm), which is the standard for the DF17 series and sets the board footprint routing density.
