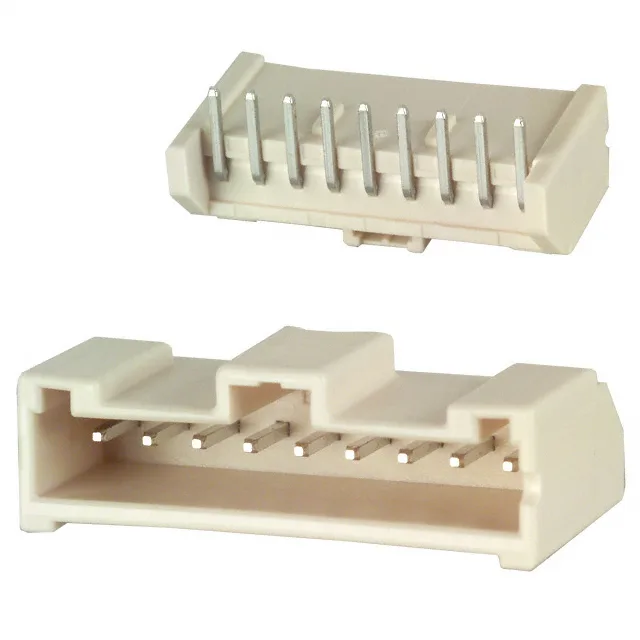

Hirose Electric Co Ltd DF1E-9P-2.5DS(05)
MPNDF1E-9P-2.5DS(05)
Obsolete
$0.9100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF1E |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.315\" (8.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
