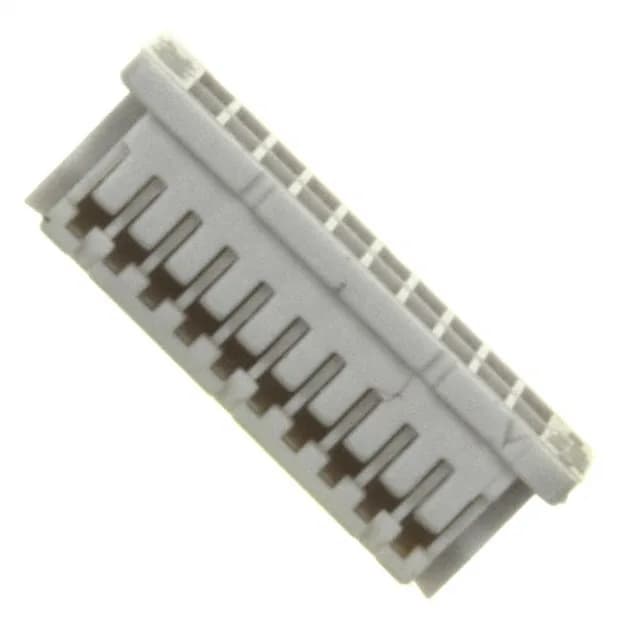

Hirose DF20A-20DS-1C Receptacle Housing, 20 Pos, 1.00 mm

MPN DF20A-20DS-1C
Active

Hirose DF20 DF20A-20DS-1C, 20-position receptacle housing, 1.00 mm pitch, dual-row, crimp termination, free-hanging, beige nylon, contacts not included.

$0.3700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDF20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DF20A-20DS-1C specifications
ParameterValue
SeriesDF20
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-35°C ~ 85°C
ColorBeige
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.039\" (1.00mm)
PackageBulk
Row spacing0.039\" (1.00mm)
Rows2
Contact terminationCrimp
Positions20

Product details

20-Position Receptacle Housing for 1.00 mm Pitch Harnesses

The Hirose DF20A-20DS-1C is a 20-position receptacle housing from the DF20 series, designed for free-hanging (in-line) wire-to-board or wire-to-wire connections at a 1.00 mm pitch. It accepts crimp-terminated female socket contacts (sold separately) and locks into the matching pin header for a secure, vibration-resistant mate.

Contacts Not Included — Order Terminals Separately

This housing ships as an empty shell — the crimp contacts are ordered separately. The DF20 series uses a dedicated female socket terminal that must be crimped onto wire before insertion.

The 20 positions are arranged in two rows with 1.00 mm pitch within and between rows. That 1.00 mm centreline drives the mating header footprint — the board-side pads must match this spacing exactly. The dual-row layout keeps the connector compact while giving you 20 circuits in a package that fits where a single-row 20-position would be too long.
